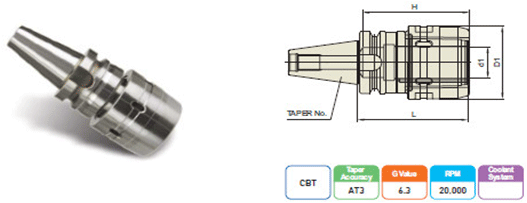

DUAL CONTACT HIGH SPEED MILLING CHUCK (CBT) |
 |
| DUAL CONTACT HIGH SPEED MILLING CHUCK (CBT) |
| TAPER No. | MODEL No. | d1 | D1 | L | H | EDP NO |
| 40 | CBT40-C3/4-3.15HS | 0.750 | 2.126 | 3.150 | 2.750 | LE020 |
| CBT40-C3/4-4.13HS | 0.750 | 2.126 | 4.130 | 2.750 | LE022 | |
| CBT40-C1-4.13HS | 1.000 | 2.461 | 4.130 | 3.150 | LE024 | |
| CBT40-C1 1/4-3.54HS | 1.250 | 2.835 | 3.540 | 3.930 | LE026 | |
| CBT40-C1 1/4-4.13HS | 1.250 | 2.835 | 4.130 | 3.930 | LE028 | |
| CBT40-C1 1/4-5.31HS | 1.250 | 2.835 | 5.310 | 3.930 | LE030 |
