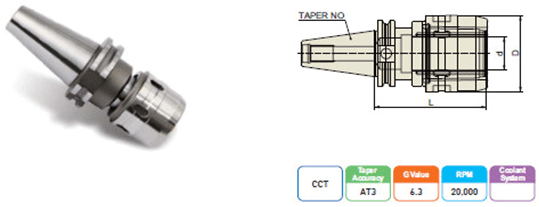

DUAL CONTACT HIGH SPEED MILLING CHUCK (CCT) |
 |
| DUAL CONTACT HIGH SPEED MILLING CHUCK (CCT) |
| TAPER No. | MODEL No. | d | D | L | EDP No. |
| 40 | CCT40-C3/4-4.13HS | 0.750 | 2.126 | 4.130 | LB020 |
| CCT40-C1-4.13HS | 1.000 | 2.461 | 4.130 | LB022 | |
| CCT40-C1 1/4-4.13HS | 1.250 | 2.835 | 4.130 | LB024 | |
| CCT40-C1 1/4-5.31HS | 1.250 | 2.835 | 5.310 | LB026 | |
| 50 | CCT50-C3/4-4.13HS | 0.750 | 2.126 | 4.130 | LC020 |
| CCT50-C1-4.13HS | 1.000 | 2.461 | 4.130 | LC022 | |
| CCT50-C1 1/4-4.13HS | 1.250 | 2.835 | 4.130 | LC024 | |
| CCT50-C1 1/4-5.31HS | 1.250 | 2.835 | 5.310 | LC026 | |
| CCT50-C1 1/4-6.5HS | 1.250 | 2.835 | 6.500 | LC028 |
