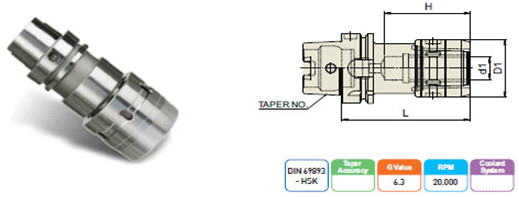

DUAL CONTACT HIGH SPEED MILLING CHUCK (HSK) |
 |
| DUAL CONTACT HIGH SPEED MILLING CHUCK (HSK) |
| TAPER No. | MODEL No. | d1 | D1 | L | H | EDP No. |
| HSK63A | HSK63A-C3/4-4.13HS | 0.750 | 2.125 | 4.130 | 2.756 | LQ020 |
| HSK63A-C1-4.72HS | 1.000 | 2.460 | 4.720 | 3.150 | LQ022 | |
| HSK63A-C1-1/4-5.31HS | 1.250 | 2.830 | 5.310 | 3.937 | LQ024 | |
| HSK100A | HSK100A-C3/4-4.33HS | 0.750 | 2.125 | 4.330 | 2.756 | LR020 |
| HSK100A-C1-5.12HS | 1.000 | 2.460 | 5.120 | 3.150 | LR022 | |
| HSK100A-C1-1/4-5.31HS | 1.250 | 2.830 | 5.310 | 3.937 | LR024 |
