DUAL CONTACT HYDRAULIC CHUCK (For MOULD) CBT

DUAL CONTACT HYDRAULIC CHUCK (For MOULD) CBT

DUAL CONTACT HYDRAULIC CHUCK (For MOULD) CBT

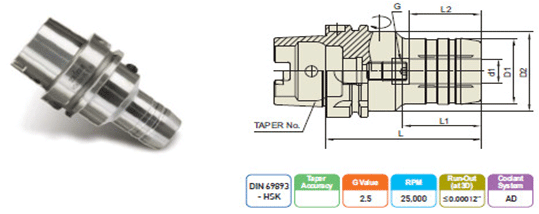

TAPER No. MODEL No. d1 D1 D2 L L1 L2 G EDP NO.
40 CBT40-HMC1/4-4.72 0.250 0.787 1.752 4.720 2.756 1.063 M5x0.8mm WE020HMC
CBT40-HMC1/4-5.90 0.250 0.787 1.752 5.900 3.937 1.063 M5x0.8mm WE022HMC
CBT40-HMC5/16-4.72 0.313 0.866 1.752 4.720 2.756 1.063 M6x1.0mm WE024HMC
CBT40-HMC5/16-5.90 0.313 0.866 1.752 5.900 3.937 1.063 M6x1.0mm WE026HMC
CBT40-HMC3/8-4.72 0.375 0.945 1.752 4.720 2.756 1.260 M8x1.0mm WE028HMC
CBT40-HMC3/8-5.90 0.375 0.945 1.752 5.900 3.937 1.260 M8x1.0mm WE030HMC
CBT40-HMC1/2-4.72 0.500 0.984 1.752 4.720 2.756 1.457 M10x1.0mm WE032HMC
CBT40-HMC1/2-5.90 0.500 0.984 1.752 5.900 3.937 1.457 M10x1.0mm WE034HMC
CBT40-HMC5/8-4.72 0.625 1.260 1.752 4.720 2.756 1.654 M12x1.0mm WE036HMC
CBT40-HMC5/8-5.90 0.625 1.260 1.752 5.900 3.937 1.654 M12x1.0mm WE038HMC
CBT40-HMC3/4-4.72 0.750 1.339 1.732 4.720 - 1.654 M16x1.0mm WE040HMC
CBT40-HMC3/4-5.90 0.750 1.339 1.850 5.900 - 1.654 M16x1.0mm WE042HMC
Unit : mm
TAPER NO. MODEL No. d1 D1 D2 L L1 L2 G EDP NO.
40 CBT40-HMC6-120 6 20 44.5 120 70 27 M5x0.8mm WE100HMC
CBT40-HMC6-150 6 20 44.5 150 100 27 M5x0.8mm WE102HMC
CBT40-HMC8-120 8 22 44.5 120 70 27 M6x1.0mm WE104HMC
CBT40-HMC8-150 8 22 44.5 150 100 27 M6x1.0mm WE106HMC
CBT40-HMC10-120 10 24 44.5 120 70 32 M8x1.0mm WE108HMC
CBT40-HMC10-150 10 24 44.5 150 100 32 M8x1.0mm WE110HMC
CBT40-HMC12-120 12 25 44.5 120 70 37 M10x1.0mm WE112HMC
CBT40-HMC12-150 12 25 44.5 150 100 37 M10x1.0mm WE114HMC
CBT40-HMC16-120 16 32 44.5 120 70 42 M12x1.0mm WE116HMC
CBT40-HMC16-150 16 32 44.5 150 100 42 M12x1.0mm WE118HMC
CBT40-HMC20-120 20 34 44 120 - 42 M16x1.0mm WE120HMC
CBT40-HMC20-150 20 34 47 150 - 42 M16x1.0mm WE122HMC
