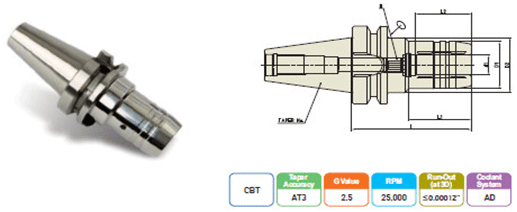

DUAL CONTACT HYDRAULIC CHUCK (For MOULD) CCT |
 |
| DUAL CONTACT HYDRAULIC CHUCK (For MOULD) CCT |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| 40 | CCT40 AD/B-HMC 1/4-4.72 | 0.250 | 0.787 | 1.949 | 4.720 | 2.756 | 1.063 | M5x0.8mm | WB020HMC |
| CCT40 AD/B-HMC 1/4-5.90 | 0.250 | 0.787 | 1.949 | 5.900 | 3.937 | 1.063 | M5x0.8mm | WB022HMC | |
| CCT40 AD/B-HMC 5/16-4.72 | 0.313 | 0.866 | 1.949 | 4.720 | 2.756 | 1.063 | M6x1.0mm | WB024HMC | |
| CCT40 AD/B-HMC 5/16-5.90 | 0.313 | 0.866 | 1.949 | 5.900 | 3.937 | 1.063 | M6x1.0mm | WB026HMC | |
| CCT40 AD/B-HMC 3/8-4.72 | 0.375 | 0.945 | 1.949 | 4.720 | 2.756 | 1.260 | M8x1.0mm | WB028HMC | |
| CCT40 AD/B-HMC 3/8-5.90 | 0.375 | 0.945 | 1.949 | 5.900 | 3.937 | 1.260 | M8x1.0mm | WB030HMC | |
| CCT40 AD/B-HMC 1/2-4.72 | 0.500 | 0.984 | 1.949 | 4.720 | 2.756 | 1.457 | M10x1.0mm | WB032HMC | |
| CCT40 AD/B-HMC 1/2-5.90 | 0.500 | 0.984 | 1.949 | 5.900 | 3.937 | 1.457 | M10x1.0mm | WB034HMC | |
| CCT40 AD/B-HMC 5/8-4.72 | 0.625 | 1.260 | 1.949 | 4.720 | 2.756 | 1.654 | M12x1.0mm | WB036HMC | |
| CCT40 AD/B-HMC 5/8-5.90 | 0.625 | 1.260 | 1.949 | 5.900 | 3.937 | 1.654 | M12x1.0mm | WB038HMC | |
| CCT40 AD/B-HMC 3/4-4.72 | 0.750 | 1.417 | 1.949 | 4.720 | 2.756 | 1.654 | M16x1.0mm | WB040HMC | |
| CCT40 AD/B-HMC 3/4-5.90 | 0.750 | 1.417 | 1.949 | 5.900 | 3.937 | 1.654 | M16x1.0mm | WB042HMC | |
| 50 | CCT50AD/B-HMC 1/4-5.90 | 0.250 | 0.787 | 1.752 | 5.900 | 3.937 | 1.063 | M5x0.8mm | WC020HMC |
| CCT50AD/B-HMC 5/16-5.90 | 0.313 | 0.866 | 1.752 | 5.900 | 3.937 | 1.063 | M6x1.0mm | WC022HMC | |
| CCT50AD/B-HMC 3/8-5.90 | 0.375 | 0.945 | 1.752 | 5.900 | 3.937 | 1.260 | M8x1.0mm | WC024HMC | |
| CCT50AD/B-HMC 1/2-5.90 | 0.500 | 0.984 | 1.752 | 5.900 | 3.937 | 1.457 | M10x1.0mm | WC026HMC | |
| CCT50AD/B-HMC 5/8-5.90 | 0.625 | 1.260 | 1.752 | 5.900 | 3.937 | 1.654 | M12x1.0mm | WC028HMC | |
| CCT50AD/B-HMC 3/4-5.90 | 0.750 | 1.417 | 1.752 | 5.900 | 3.937 | 1.654 | M16x1.0mm | WC030HMC | |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| 40 | CCT40AD/B-HMC6-120 | 6 | 20 | 49.5 | 120 | 70 | 27 | M5x0.8mm | WB100HMC |
| CCT40AD/B-HMC6-150 | 6 | 20 | 49.5 | 150 | 100 | 27 | M5x0.8mm | WB102HMC | |
| CCT40AD/B-HMC8-120 | 8 | 22 | 49.5 | 120 | 70 | 27 | M6x1.0mm | WB104HMC | |
| CCT40AD/B-HMC8-150 | 8 | 22 | 49.5 | 150 | 100 | 27 | M6x1.0mm | WB106HMC | |
| CCT40AD/B-HMC10-120 | 10 | 24 | 49.5 | 120 | 70 | 32 | M8x1.0mm | WB108HMC | |
| CCT40AD/B-HMC10-150 | 10 | 24 | 49.5 | 150 | 100 | 32 | M8x1.0mm | WB110HMC | |
| CCT40AD/B-HMC12-120 | 12 | 25 | 49.5 | 120 | 70 | 37 | M10x1.0mm | WB112HMC | |
| CCT40AD/B-HMC12-150 | 12 | 25 | 49.5 | 150 | 100 | 37 | M10x1.0mm | WB114HMC | |
| CCT40AD/B-HMC16-120 | 16 | 32 | 49.5 | 120 | 70 | 42 | M12x1.0mm | WB116HMC | |
| CCT40AD/B-HMC16-150 | 16 | 32 | 49.5 | 150 | 100 | 42 | M12x1.0mm | WB118HMC | |
| CCT40AD/B-HMC20-120 | 20 | 36 | 49.5 | 120 | 70 | 42 | M16x1.0mm | WB120HMC | |
| CCT40AD/B-HMC20-150 | 20 | 36 | 49.5 | 150 | 100 | 42 | M16x1.0mm | WB122HMC | |
| 50 | CCT50AD/B-HMC6-150 | 6 | 20 | 44.5 | 150 | 100 | 27 | M5x0.8mm | WC100HMC |
| CCT50AD/B-HMC8-150 | 8 | 22 | 44.5 | 150 | 100 | 27 | M6x1.0mm | WC102HMC | |
| CCT50AD/B-HMC10-150 | 10 | 24 | 44.5 | 150 | 100 | 32 | M8x1.0mm | WC104HMC | |
| CCT50AD/B-HMC12-150 | 12 | 25 | 44.5 | 150 | 100 | 37 | M10x1.0mm | WC106HMC | |
| CCT50AD/B-HMC16-150 | 16 | 32 | 44.5 | 150 | 100 | 42 | M12x1.0mm | WC108HMC | |
| CCT50AD/B-HMC20-150 | 20 | 36 | 44.5 | 150 | 100 | 42 | M16x1.0mm | WC110HMC |
