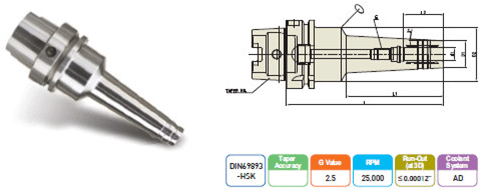

DUAL CONTACT HYDRAULIC CHUCK (For MOULD) HSK

TAPER No.	MODEL No.	d1	D1	D2	L	L1	L2	G	EDP No.
63A	HSK63A-HMC1/4-5.70	0.250	0.787	1.969	5.700	3.543	1.063	M5x0.8mm	WQ020HMC
	HSK63A-HMC5/16-5.70	0.313	0.866	1.969	5.700	3.543	1.063	M6x1.0mm	WQ022HMC
	HSK63A-HMC3/8-5.70	0.375	0.945	1.969	5.700	3.543	1.260	M8x1.0mm	WQ024HMC
	HSK63A-HMC1/2-5.70	0.500	0.984	1.969	5.700	3.543	1.457	M10x1.0mm	WQ026HMC
	HSK63A-HMC5/8-5.70	0.625	1.260	1.969	5.700	3.543	1.654	M12x1.0mm	WQ028HMC
	HSK63A-HMC3/4-5.70	0.750	1.417	1.969	5.700	3.543	1.654	M16x1.0mm	WQ030HMC
100A	HSK100A-HMC1/4-5.70	0.250	0.787	1.969	5.700	3.543	1.063	M5x0.8mm	WR100HMC
	HSK100A-HMC5/16-5.70	0.313	0.866	1.969	5.700	3.543	1.063	M6x1.0mm	WR102HMC
	HSK100A-HMC3/8-5.70	0.375	0.945	1.969	5.700	3.543	1.260	M8x1.0mm	WR104HMC
	HSK100A-HMC1/2-5.70	0.500	0.984	1.969	5.700	3.543	1.457	M10x1.0mm	WR106HMC
	HSK100A-HMC5/8-5.70	0.625	1.260	1.969	5.700	3.543	1.654	M12x1.0mm	WR108HMC
	HSK100A-HMC3/4-5.70	0.750	1.417	1.969	5.700	3.543	1.654	M16x1.0mm	WR110HMC
								Unit : mm
TAPER No.	MODEL No.	d1	D1	D2	L	L1	L2	G	EDP No.
63A	HSK63A-HMC6-145	6	20	50	145	90	27	M5x0.8mm	WQ100HMC
	HSK63A-HMC8-145	8	22	50	145	90	27	M6x1.0mm	WQ102HMC
	HSK63A-HMC10-145	10	24	50	145	90	32	M8x1.0mm	WQ104HMC
	HSK63A-HMC12-145	12	25	50	145	90	37	M10x1.0mm	WQ106HMC
	HSK63A-HMC16-145	16	32	50	145	90	42	M12x1.0mm	WQ108HMC
	HSK63A-HMC20-145	20	36	50	145	90	42	M16x1.0mm	WQ110HMC
100A	HSK100A-HMC6-150	6	20	50	150	90	27	M5x0.8mm	WR200HMC
	HSK100A-HMC8-150	8	22	50	150	90	27	M6x1.0mm	WR202HMC
	HSK100A-HMC10-150	10	24	50	150	90	32	M8x1.0mm	WR204HMC
	HSK100A-HMC12-150	12	25	50	150	90	37	M10x1.0mm	WR206HMC
	HSK100A-HMC16-150	16	32	50	150	90	42	M12x1.0mm	WR208HMC
	HSK100A-HMC20-150	20	36	50	150	90	42	M16x1.0mm	WR210HMC

DUAL CONTACT HYDRAULIC CHUCK (For MOULD) HSK
