DUAL CONTACT HYDRAULIC CHUCK (Power E Hydro) - CBT |
 |
| DUAL CONTACT HYDRAULIC CHUCK (Power E Hydro) CBT |

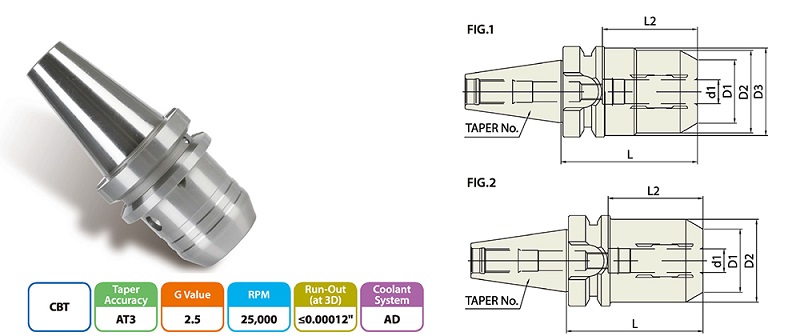

| TAPER NO. | MODEL No. | d1 | D1 | D2 | D3 | L | L2 | G | FIG | EDP NO. |
| 30 | CBT30-HC3/4P-3.543 | 0.75 | 1.496 | 1.653 | 1.751 | 3.543 | 1.889 | M8x1.0mm | 1 | WD030PE |
| 40 | CBT40-HC3/4P-2.854 | 0.75 | 1.496 | 1.938 | - | 2.854 | 1.889 | M8x1.0mm | 2 | WE030PE |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | D3 | L | L2 | G | FIG | EDP NO. |
| 30 | CBT30-HC12P-69 | 12 | 32 | 42 | 44.5 | 69 | 41 | M8x1.0 | 1 | WD112PE |
| CBT30-HC20P-90 | 20 | 38 | 42 | 44.5 | 90 | 48 | M8x1.0 | 1 | WD120PE | |
| 40 | CBT40-HCl 2P-58 | 12 | 32 | 42 | - | 58 | 41 | M8x1.0 | 2 | WE112PE |
| CBT40-HC20P-72.5 | 20 | 38 | 49.25 | - | 72.5 | 48 | M8x1.0 | 2 | WE120PE |
