DUAL CONTACT HYDRAULIC CHUCK (Power E Hydro) - CCT |
 |
| DUAL CONTACT HYDRAULIC CHUCK (Power E Hydro) CCT |

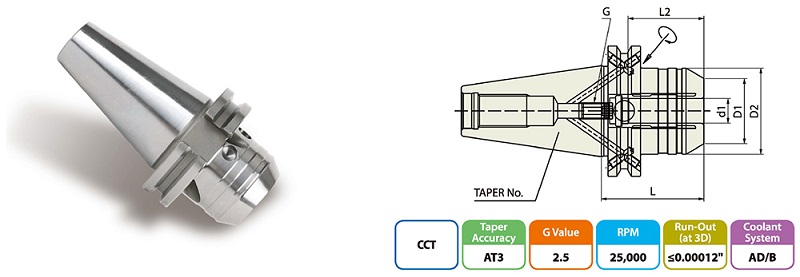

| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L2 | G | EDP NO. |
| 40 | CCT40AD/B-HC3/4P-2.539 | 0.75 | 1.496 | 49.25 | 2.539 | 1.889 | M8x1.0mm | WB030PE |
| CCT40AD/B-HC3/4P-4.000 | 0.75 | 1.496 | 49.25 | 4.000 | 1.889 | M8x1.0mm | WB031PE |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L2 | G | EDP NO. |
| 40 | CCT40AD/B-HC20P-64.S | 20 | 38 | 49.25 | 64.5 | 48 | M8x1.0 | WB130PE |
| CCT40AD/B-HC20P-101.6 | 20 | 38 | 49.25 | 101.6 | 48 | M8x1.0 | WB131PE |
