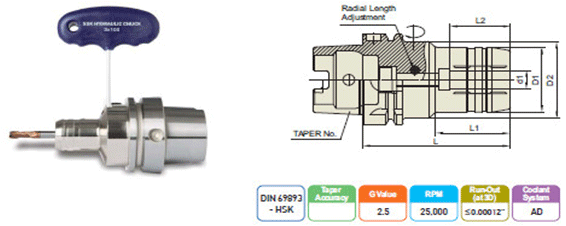

DUAL CONTACT HYDRULIC CHUCK (RADIAL TOOL LENGTH PRE-SETTING TYPE) HSK |
 |
| DUAL CONTACT HYDRULIC CHUCK (RADIAL TOOL LENGTH PRE-SETTING TYPE) HSK |
| TAPER No. | MODEL No. | d1 | D1 | D2 | L | L2 | EDP No. |
| 63A | HSK63A-HCR6-80 | 6 | 26 | 50 | 80 | 33 | WQ100HCR |
| HSK63A-HCR8-80 | 8 | 28 | 50 | 80 | 33 | WQ102HCR | |
| HSK63A-HCR10-85 | 10 | 30 | 50 | 85 | 38 | WQ104HCR | |
| HSK63A-HCR12-90 | 12 | 32 | 50 | 90 | 40 | WQ106HCR | |
| HSK63A-HCR14-90 | 14 | 34 | 50 | 90 | 46 | WQ108HCR | |
| HSK63A-HCR16-95 | 16 | 38 | 50 | 95 | 51 | WQ110HCR | |
| HSK63A-HCR18-95 | 18 | 40 | 50 | 95 | 52 | WQ112HCR | |
| HSK63A-HCR20-100 | 20 | 42 | 50 | 100 | 51 | WQ114HCR | |
| HSK63A-HCR25-120 | 25 | 57 | 63 | 120 | 54.5 | WQ116HCR | |
| HSK63A-HCR32-125 | 32 | 64 | 75 | 125 | 57.5 | WQ118HCR | |
| 100A | HSK100A-HCR6-85 | 6 | 26 | 63 | 85 | 33 | WR100HCR |
| HSK100A-HCR8-85 | 8 | 28 | 63 | 85 | 33 | WR102HCR | |
| HSK100A-HCR10-90 | 10 | 30 | 63 | 90 | 36 | WR104HCR | |
| HSK100A-HCR12-95 | 12 | 32 | 63 | 95 | 40 | WR106HCR | |
| HSK100A-HCR14-95 | 14 | 34 | 63 | 95 | 41 | WR108HCR | |
| HSK100A-HCR16-100 | 16 | 38 | 63 | 100 | 46 | WR110HCR | |
| HSK100A-HCR18-100 | 18 | 40 | 63 | 100 | 46 | WR112HCR | |
| HSK100A-HCR20-105 | 20 | 42 | 75 | 105 | 51 | WR114HCR | |
| HSK100A-HCR25-115 | 25 | 57 | 75 | 115 | 55.5 | WR116HCR | |
| HSK100A-HCR32-120 | 32 | 64 | 75 | 120 | 63.5 | WR118HCR |
