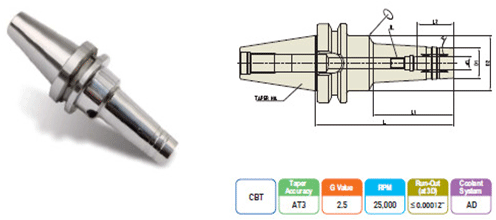

DUAL CONTACT HYDRAULIC CHUCK (SLIM) CBT |
 |
| DUAL CONTACT HYDRAULIC CHUCK (SLIM) CBT |
| MODEL No. | TAPER NO. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| CBT30-HC1/4-2.76 | 30 | 0.250 | 1.024 | 1.752 | 2.760 | 1.161 | 1.063 | M5x0.8mm | WD020 |
| CBT30-HC5/16-2.76 | 0.313 | 1.102 | 1.752 | 2.760 | 1.181 | 1.063 | M6x1.0mm | WD022 | |
| CBT30-HC3/8-2.95 | 0.375 | 1.181 | 1.752 | 2.950 | 1.220 | 1.260 | M8x1.0mm | WD024 | |
| CBT30-HC1/2-3.35 | 0.500 | 1.260 | 1.752 | 3.350 | 1.575 | 1.457 | M10x1.0mm | WD026 | |
| CBT30-HC5/8-3.54 | 0.625 | 1.496 | 1.752 | 3.540 | 1.811 | 1.654 | M12x1.0mm | WD028 | |
| CBT30-HC3/4-3.54 | 0.750 | 1.654 | 1.752 | 3.540 | 1.890 | 1.654 | M16x1.0mm | WD030 | |
| CBT40-HC1/4-3.54 | 40 | 0.250 | 1.024 | 1.772 | 3.540 | 1.713 | 1.063 | M5x0.8mm | WE020 |
| CBT40-HC5/16-3.54 | 0.313 | 1.102 | 1.772 | 3.540 | 1.713 | 1.063 | M6x1.0mm | WE022 | |
| CBT40-HC3/8-3.54 | 0.375 | 1.181 | 1.772 | 3.540 | 1.752 | 1.260 | M8x1.0mm | WE024 | |
| CBT40-HC1/2-3.54 | 0.500 | 1.260 | 1.772 | 3.540 | 1.752 | 1.457 | M10x1.0mm | WE026 | |
| CBT40-HC5/8-3.54 | 0.625 | 1.496 | 1.772 | 3.540 | 1.870 | 1.654 | M10x1.0mm | WE028 | |
| CBT40-HC3/4-3.54 | 0.750 | 1.654 | 1.772 | 3.540 | 1.870 | 1.654 | M10x1.0mm | WE030 | |
| CBT40-HC1"-3.94 | 1.000 | 1.969 | 2.362 | 3.940 | 1.772 | 1.890 | M16x1.0mm | WE032 | |
| CBT40-HC1 1/4-4.13 | 1.250 | 2.362 | 2.362 | 4.130 | - | 2.165 | M16x1.0mm | WE034 | |
| MODEL No. | TAPER NO. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| CBT30-HC6-70 | 30 | 6 | 26 | 44.5 | 70 | 29.5 | 27 | M5x0.8mm | WD100 |
| CBT30-HC8-70 | 8 | 28 | 44.5 | 70 | 30 | 27 | M6x1.0mm | WD102 | |
| CBT30-HC10-75 | 10 | 30 | 44.5 | 75 | 31 | 32 | M8x1.0mm | WD104 | |
| CBT30-HC12-85 | 12 | 32 | 44.5 | 85 | 40 | 37 | M10x1.0mm | WD106 | |
| CBT30-HC14-85 | 14 | 34 | 44.5 | 85 | 40 | 37 | M12x1.0mm | WD108 | |
| CBT30-HC16-90 | 16 | 38 | 44.5 | 90 | 46 | 42 | M16x1.0mm | WD110 | |
| CBT30-HC18-90 | 18 | 40 | 44.5 | 90 | 46 | 42 | M12x1.0mm | WD112 | |
| CBT30-HC20-90 | 20 | 42 | 44.5 | 90 | 48 | 42 | M16x1.0mm | WD114 | |
| CBT40-HC6-90 | 40 | 6 | 26 | 49.5 | 90 | 30 | 27 | M5x0.8mm | WE100 |
| CBT40-HC8-90 | 8 | 28 | 49.5 | 90 | 30 | 27 | M6x1.0mm | WE102 | |
| CBT40-HC10-90 | 10 | 30 | 49.5 | 90 | 32 | 32 | M8x1.0mm | WE104 | |
| CBT40-HC12-90 | 12 | 32 | 49.5 | 90 | 35 | 37 | M10x1.0mm | WE106 | |
| CBT40-HC14-90 | 14 | 34 | 49.5 | 90 | 35 | 37 | M10x1.0mm | WE108 | |
| CBT40-HC16-90 | 16 | 38 | 49.5 | 90 | 40 | 42 | M10x1.0mm | WE110 | |
| CBT40-HC18-90 | 18 | 40 | 49.5 | 90 | 40 | 42 | M16x1.0mm | WE112 | |
| CBT40-HC20-90 | 20 | 42 | 49.5 | 90 | 40 | 42 | M16x1.0mm | WE114 | |
| CBT40-HC25-100 | 25 | 50 | 60 | 100 | 45 | 48 | M10x1.0mm | WE116 | |
| CBT40-HC32-105 | 32 | 60 | 60 | 105 | 50 | 55 | M16x1.0mm | WE118 |
