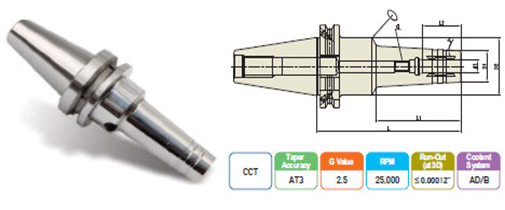

DUAL CONTACT HYDRAULIC CHUCK (SLIM) CCT |
 |
| DUAL CONTACT HYDRAULIC CHUCK (SLIM) CCT |
| MODEL No. | TAPER NO. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| CCT40AD/B-HC1/4-3.54 | 40 | 0.250 | 1.024 | 1.752 | 3.540 | 1.280 | 1.063 | M5x0.8mm | WB020 |
| CCT40AD/B-HC5/16-3.54 | 0.313 | 1.102 | 1.752 | 3.540 | 1.280 | 1.063 | M6x1.0mm | WB022 | |
| CCT40AD/B-HC3/8-3.54 | 0.375 | 1.181 | 1.752 | 3.540 | 1.634 | 1.260 | M8x1.0mm | WB024 | |
| CCT40AD/B-HC1/2-3.54 | 0.500 | 1.260 | 1.752 | 3.540 | 1.634 | 1.457 | M10x1.0mm | WB026 | |
| CCT40AD/B-HC5/8-3.54 | 0.625 | 1.496 | 1.752 | 3.540 | 1.949 | 1.654 | M10x1.0mm | WB028 | |
| CCT40AD/B-HC3/4-3.54 | 0.750 | 1.654 | 1.752 | 3.540 | 1.949 | 1.654 | M10x1.0mm | WB030 | |
| CCT40AD/B-HC1-3.94 | 1.000 | 2.165 | 2.480 | 3.940 | 2.559 | 1.890 | M16x1.0mm | WB032 | |
| CCT40AD/B-HC1 1/4-4.13 | 1.250 | 2.480 | 3.150 | 4.130 | 1.378 | 2.165 | M16x1.0mm | WB034 | |
| CCT50AD/B-HC1/4-3.54 | 50 | 0.250 | 1.024 | 1.978 | 3.540 | 1.181 | 1.063 | M5x0.8mm | WC020 |
| CCT50AD/B-HC5/16-3.54 | 0.313 | 1.102 | 1.978 | 3.540 | 1.181 | 1.063 | M6x1.0mm | WC022 | |
| CCT50AD/B-HC3/8-3.54 | 0.375 | 1.181 | 1.978 | 3.540 | 1.260 | 1.260 | M8x1.0mm | WC024 | |
| CCT50AD/B-HC1/2-3.54 | 0.500 | 1.260 | 1.978 | 3.540 | 1.378 | 1.457 | M10x1.0mm | WC026 | |
| CCT50AD/B-HC5/8-3.54 | 0.625 | 1.496 | 1.978 | 3.540 | 1.575 | 1.654 | M10x1.0mm | WC028 | |
| CCT50AD/B-HC3/4-3.54 | 0.750 | 1.654 | 1.978 | 3.540 | 1.575 | 1.654 | M10x1.0mm | WC030 | |
| CCT50AD/B-HC1-4.13 | 1.000 | 2.244 | 2.480 | 4.130 | 2.047 | 1.890 | M16x1.0mm | WC032 | |
| CCT50AD/B-HC1 1/4-4.52 | 1.250 | 2.480 | 2.953 | 4.520 | 2.441 | 2.165 | M16x1.0mm | WC034 |
