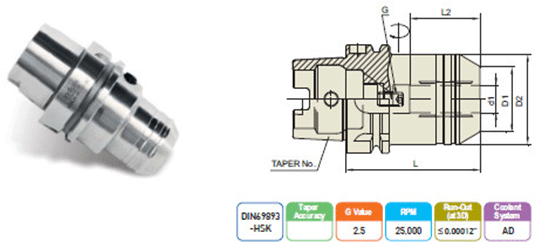

DUAL CONTACT HYDRAULIC CHUCK (SLIM) HSK |
 |
| DUAL CONTACT HYDRAULIC CHUCK (SLIM) HSK |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| 63A | HSK63A-HC 1/4- 2.76 | 0.250 | 1.024 | 1.969 | 2.756 | 0.945 | 1.063 | M5x0.8mm | WQ020 |
| HSK63A-HC 3/8- 3.15 | 0.375 | 1.181 | 1.969 | 3.150 | 1.378 | 1.260 | M6x1.0mm | WQ022 | |
| HSK63A-HC 1/2- 3.35 | 0.500 | 1.260 | 1.969 | 3.346 | 1.575 | 1.457 | M10x1.0mm | WQ024 | |
| HSK63A-HC 3/4- 3.54 | 0.750 | 1.654 | 1.969 | 3.543 | 1.890 | 1.654 | M16x1.0mm | WQ026 | |
| HSK63A-HC 1 - 4.72 | 1.000 | 2.244 | 1.969 | 4.724 | 2.323 | 1.890 | M16x1.0mm | WQ028 | |
| HSK63A-HC 1 1/4- 4.92 | 1.250 | 2.520 | 1.969 | 4.921 | 2.480 | 2.165 | M16x1.0mm | WQ030 | |
| 100A | HSK100A-HC 1/4- 2.95 | 0.250 | 1.024 | 1.969 | 2.95 | 0.945 | 1.063 | M5x0.8mm | WR020 |
| HSK100A-HC 3/8- 3.54 | 0.375 | 1.181 | 1.969 | 3.54 | 1.378 | 1.260 | M6x1.0mm | WR022 | |
| HSK100A-HC 1/2- 3.74 | 0.500 | 1.260 | 1.969 | 3.74 | 1.575 | 1.457 | M10x1.0mm | WR024 | |
| HSK100A-HC 3/4- 4.13 | 0.750 | 1.654 | 1.969 | 4.13 | 1.890 | 1.654 | M16x1.0mm | WR026 | |
| HSK100A-HC 1 - 4.33 | 1.000 | 2.244 | 2.480 | 4.33 | 2.323 | 1.890 | M16x1.0mm | WR028 | |
| HSK100A-HC 1 1/4- 4.33 | 1.250 | 2.520 | 2.953 | 4.33 | 2.441 | 2.165 | M16x1.0mm | WR032 |
