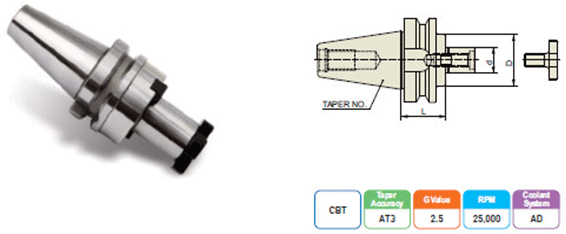

DUAL CONTACT SHELL MILL ARBOR (CBT) |
 |
| DUAL CONTACT SHELL MILL ARBOR (CBT) |
| TAPER No. | MODEL No. | d | D | L | EDP No. |
| 30 | CBT30 - SMA1/2-1.97 | 0.500 | 1.440 | 1.970 | ED100 |
| CBT30 - SMA3/4-1.97 | 0.750 | 1.690 | 1.970 | ED102 | |
| CBT30 - SMA1-1.97 | 1.000 | 2.190 | 1.970 | ED104 | |
| CBT30 - SMA1-1/4-1.97 | 1.250 | 2.750 | 1.970 | ED106 | |
| 40 | CBT40 - SMA1/2-2.36 | 0.500 | 1.440 | 2.360 | EE100 |
| CBT40 - SMA3/4"-2.36 | 0.750 | 1.690 | 2.360 | EE102 | |
| CBT40 - SMA1"-2.36 | 1.000 | 2.190 | 2.360 | EE104 | |
| CBT40 - SMA1-1/4"-2.36 | 1.250 | 2.750 | 2.360 | EE106 |
