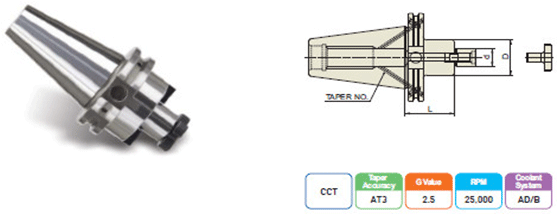

DUAL CONTACT SHELL MILL ARBOR (CCT) |
 |
| DUAL CONTACT SHELL MILL ARBOR (CCT) |
| TAPER No. | MODEL No. | d | D | L | EDP No. |
| 40 | CCT40AD/B-SMA1/2-2.36 | 0.500 | 1.440 | 2.360 | EB020 |
| CCT40AD/B-SMA1/2-4.72 | 0.500 | 1.440 | 4.720 | EB022 | |
| CCT40AD/B-SMA3/4-2.36 | 0.750 | 1.690 | 2.360 | EB024 | |
| CCT40AD/B-SMA3/4-4.72 | 0.750 | 1.690 | 4.720 | EB026 | |
| CCT40AD/B-SMA1-2.36 | 1.000 | 2.190 | 2.360 | EB028 | |
| CCT40AD/B-SMA1-4.72 | 1.000 | 2.190 | 4.720 | EB030 | |
| CCT40AD/B-SMA1-1/4-2.36 | 1.250 | 2.750 | 2.360 | EB032 | |
| CCT40AD/B-SMA1-1/4-4.72 | 1.250 | 2.750 | 4.720 | EB034 | |
| 50 | CCT50AD/B-SMA1/2-2.95 | 0.500 | 1.440 | 2.950 | EC020 |
| CCT50AD/B-SMA1/2-4.72 | 0.500 | 1.440 | 4.720 | EC022 | |
| CCT50AD/B-SMA3/4-2.95 | 0.750 | 1.690 | 2.950 | EC024 | |
| CCT50AD/B-SMA3/4-4.72 | 0.750 | 1.690 | 4.720 | EC026 | |
| CCT50AD/B-SMA1-2.95 | 1.000 | 2.190 | 2.950 | EC028 | |
| CCT50AD/B-SMA1-4.72 | 1.000 | 2.190 | 4.720 | EC030 | |
| CCT50AD/B-SMA1-1/4-2.95 | 1.250 | 2.750 | 2.950 | EC032 | |
| CCT50AD/B-SMA1-1/4-4.72 | 1.250 | 2.750 | 4.720 | EC034 | |
| CCT50AD/B-SMA1-1/2-2.95 | 1.500 | 3.810 | 2.950 | EC036 | |
| CCT50AD/B-SMA1-1/2-4.72 | 1.500 | 3.810 | 4.720 | EC038 |
