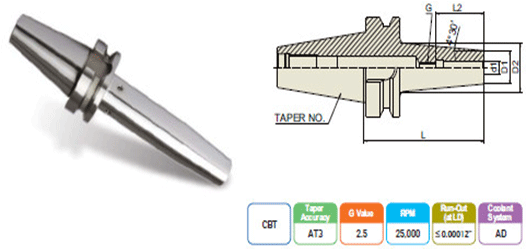

DUAL CONTACT SHRINK FIT HOLDER CBT |
 |
| DUAL CONTACT SHRINK FIT HOLDER CBT |
| TAPER No. | MODEL No. | d1 | D1 | D2 | L | L2 | G | EDP No. |
| 30 | CBT30 - SFH1/8-2.36 | 0.125 | 0.394 | 0.748 | 3.150 | 0.354 | - | VD020 |
| CBT30 - SFH3/16-2.36 | 0.188 | 0.394 | 0.748 | 3.150 | 0.472 | - | VD022 | |
| CBT30 - SFH1/4-2.36 | 0.250 | 0.827 | 1.063 | 3.150 | 1.417 | M5x0.8mm | VD024 | |
| CBT30 - SFH3/8-2.36 | 0.375 | 0.945 | 1.260 | 3.150 | 1.654 | M8x1.0mm | VD026 | |
| CBT30 - SFH1/2-3.15 | 0.500 | 0.945 | 1.260 | 3.150 | 1.850 | M10x1.0mm | VD028 | |
| CBT30 - SFH5/8-3.15 | 0.625 | 1.063 | 1.339 | 3.150 | 1.969 | M12x1.0mm | VD030 | |
| CBT30 - SFH3/4-3.54 | 0.750 | 1.299 | 1.654 | 3.150 | 2.047 | M16x1.0mm | VD032 | |
| 40 | CBT40 - SFH1/8-3.54 | 0.125 | 0.394 | 0.748 | 3.540 | 0.354 | - | VE020 |
| CBT40 - SFH3/16-3.54 | 0.188 | 0.394 | 0.748 | 3.540 | 0.472 | - | VE022 | |
| CBT40 - SFH1/4-3.54 | 0.250 | 0.827 | 1.063 | 3.540 | 1.417 | M5x0.8mm | VE024 | |
| CBT40 - SFH1/4-6.30 | 0.250 | 0.827 | 1.063 | 6.300 | 1.417 | M5x0.8mm | VE026 | |
| CBT40 - SFH3/8-3.54 | 0.375 | 0.945 | 1.260 | 3.540 | 1.654 | M8x1.0mm | VE028 | |
| CBT40 - SFH3/8-6.30 | 0.375 | 0.945 | 1.260 | 6.300 | 1.654 | M8x1.0mm | VE030 | |
| CBT40 - SFH1/2-3.54 | 0.500 | 0.945 | 1.260 | 3.540 | 1.850 | M10x1.0mm | VE032 | |
| CBT40 - SFH1/2-6.30 | 0.500 | 0.945 | 1.260 | 6.300 | 1.850 | M10x1.0mm | VE034 | |
| CBT40 - SFH5/8-3.54 | 0.625 | 1.063 | 1.339 | 3.540 | 1.969 | M12x1.0mm | VE036 | |
| CBT40 - SFH5/8-6.30 | 0.625 | 1.063 | 1.339 | 6.300 | 1.969 | M12x1.0mm | VE038 | |
| CBT40 - SFH3/4-3.54 | 0.750 | 1.299 | 1.654 | 3.540 | 2.047 | M16x1.0mm | VE040 | |
| CBT40 - SFH3/4-6.30 | 0.750 | 1.299 | 1.654 | 6.300 | 2.047 | M16x1.0mm | VE042 | |
| CBT40 - SFH1-3.94 | 1.000 | 1.732 | 2.087 | 3.940 | 2.283 | M16x1.0mm | VE044 | |
| CBT40 - SFH1-6.30 | 1.000 | 1.732 | 2.087 | 6.300 | 2.283 | M16x1.0mm | VE046 |
