DUAL CONTACT SHRINK FIT HOLDER CCT

DUAL CONTACT SHRINK FIT HOLDER CCT

DUAL CONTACT SHRINK FIT HOLDER CCT

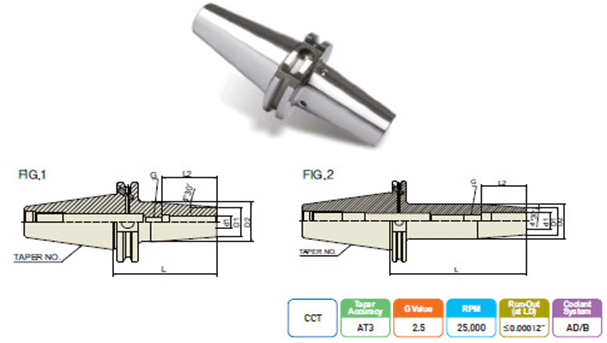

TAPER No. MODEL No. d1 D1 D2 L L2 G FIG EDP No.
40 CCT40AD/B - SFH1/8-3.15 0.125 0.394 0.748 3.150 0.354 - 1 VB020
CCT40AD/B - SFH3/16-3.15 0.188 0.394 0.748 3.150 0.472 - VB022
CCT40AD/B - SFH1/4-3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm VB024
CCT40AD/B - SFH1/4-6.3 0.250 0.827 1.063 6.300 1.417 M5x0.8mm VB026
CCT40AD/B - SFH3/8-3.15 0.375 0.945 1.260 3.150 1.654 M8x1.0mm VB028
CCT40AD/B - SFH3/8-6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm VB030
CCT40AD/B - SFH1/2-3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm VB032
CCT40AD/B - SFH1/2-6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm VB034
CCT40AD/B - SFH5/8-3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm VB036
CCT40AD/B - SFH5/8-6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm VB038
CCT40AD/B - SFH3/4-3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mm VB040
CCT40AD/B - SFH3/4-6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm VB042
CCT40AD/B - SFH1-3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mm VB044
CCT40AD/B - SFH1-6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm VB046
CCT40AD/B - SFH1-1/4-3.94 1.250 1.732 2.087 3.940 2.283 M16x1.0mm VB048
CCT40AD/B - SFH1-1/4-6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm VB050
50 CCT50AD/B - SFH1/8-3.15 0.125 0.394 0.748 3.150 0.354 - 2 VC020
CCT50AD/B - SFH3/16-3.15 0.188 0.394 0.748 3.150 0.472 - VC022
CCT50AD/B - SFH1/4-3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm VC024
CCT50AD/B - SFH1/4-6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm VC026
CCT50AD/B - SFH3/8-3.15 0.375 0.945 1.260 3.150 1.654 M8x1.0mm VC028
CCT50AD/B - SFH3/8-6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm VC030
CCT50AD/B - SFH1/2-3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm VC032
CCT50AD/B - SFH1/2-6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm VC034
CCT50AD/B - SFH5/8-3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm VC036
CCT50AD/B - SFH5/8-6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm VC040
CCT50AD/B - SFH3/4-3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mm VC042
CCT50AD/B - SFH3/4-6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm VC044
CCT50AD/B - SFH1-3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mm VC046
CCT50AD/B - SFH1-6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm VC048
CCT50AD/B - SFH1-1/4-3.94 1.250 1.732 2.087 3.940 2.283 M16x1.0mm VC050
CCT50AD/B - SFH1-1/4-6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm VC052
