DUAL CONTACT SHRINK FIT HOLDER Coolant Channel Type CCT |
 |
| DUAL CONTACT SHRINK FIT HOLDER Coolant Channel Type CCT |

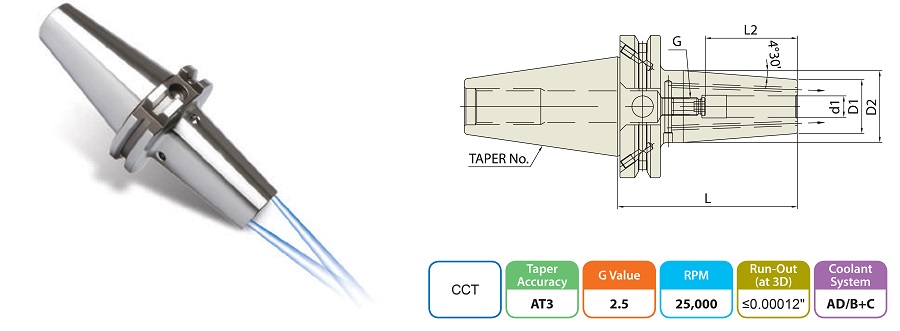

| EDP | TAPER No. | MODEL No. | d1 | D1 | D2 | L | L2 | G |
| VB024J | 40 | CCT40 AD/B - SFH 1/4C - 3.15 | 0.25 | 0.827 | 1.063 | 3.15 | 1.417 | M5x0.8mm |
| VB026J | 40 | CCT40 AD/B - SFH 1/4C - 6.30 | 0.25 | 0.827 | 1.063 | 6.3 | 1.417 | M5x0.8mm |
| VB028J | 40 | CCT40 AD/B - SFH 3/8C - 3.15 | 0.375 | 0.945 | 1.26 | 3.15 | 1.654 | M8x1.0mm |
| VB030J | 40 | CCT40 AD/B - SFH 3/8C - 6.30 | 0.375 | 0.945 | 1.26 | 6.3 | 1.654 | M8x1.0mm |
| VB032J | 40 | CCT40 AD/B - SFH 1/2C - 3.15 | 0.5 | 0.945 | 1.26 | 3.15 | 1.85 | M10x1.0mm |
| VB034J | 40 | CCT40 AD/B - SFH 1/2C - 6.30 | 0.5 | 0.945 | 1.26 | 6.3 | 1.85 | M10x1.0mm |
| VB036J | 40 | CCT40 AD/B - SFH 5/8C - 3.15 | 0.625 | 1.063 | 1.339 | 3.15 | 1.969 | M12x1.0mm |
| VB038J | 40 | CCT40 AD/B - SFH 5/8C - 6.30 | 0.625 | 1.063 | 1.339 | 6.3 | 1.969 | M12x1.0mm |
| VB040J | 40 | CCT40 AD/B - SFH 3/4C - 3.15 | 0.75 | 1.299 | 1.654 | 3.15 | 2.047 | M16x1.0mm |
| VB042J | 40 | CCT40 AD/B - SFH 3/4C - 6.30 | 0.75 | 1.299 | 1.654 | 6.3 | 2.047 | M16x1.0mm |
| VB044J | 40 | CCT40 AD/B - SFH 1C - 3.94 | 1 | 1.732 | 2.087 | 3.94 | 2.283 | M16x1.0mm |
| VB046J | 40 | CCT40 AD/B - SFH 1C - 6.30 | 1 | 1.732 | 2.087 | 6.3 | 2.283 | M16x1.0mm |
| VB048J | 40 | CCT40 AD/B - SFH 1 1/4C - 3.94 | 1.25 | 1.732 | 2.087 | 3.94 | 2.283 | M16x1.0mm |
| VB050J | 40 | CCT40 AD/B - SFH 1 1/4C - 6.30 | 1.25 | 1.732 | 2.087 | 6.3 | 2.283 | M16x1.0mm |
| VC024J | 50 | CCT50 AD/B - SFH 1/4C - 3.15 | 0.25 | 0.827 | 1.063 | 3.15 | 1.417 | M5x0.8mm |
| VC026J | 50 | CCT50 AD/B - SFH 1/4C - 6.30 | 0.25 | 0.827 | 1.063 | 6.3 | 1.417 | M5x0.8mm |
| VC028J | 50 | CCT50 AD/B - SFH 3/8C - 3.15 | 0.375 | 0.945 | 1.26 | 3.15 | 1.654 | M8x1.0mm |
| VC030J | 50 | CCT50 AD/B - SFH 3/8C - 6.30 | 0.375 | 0.945 | 1.26 | 6.3 | 1.654 | M8x1.0mm |
| VC032J | 50 | CCT50 AD/B - SFH 1/2C - 3.15 | 0.5 | 0.945 | 1.26 | 3.15 | 1.85 | M10x1.0mm |
| VC034J | 50 | CCT50 AD/B - SFH 1/2C - 6.30 | 0.5 | 0.945 | 1.26 | 6.3 | 1.85 | M10x1.0mm |
| VC036J | 50 | CCT50 AD/B - SFH 5/8C - 3.15 | 0.625 | 1.063 | 1.339 | 3.15 | 1.969 | M12x1.0mm |
| VC040J | 50 | CCT50 AD/B - SFH 5/8C - 6.30 | 0.625 | 1.063 | 1.339 | 6.3 | 1.969 | M12x1.0mm |
| VC042J | 50 | CCT50 AD/B - SFH 3/4C - 3.15 | 0.75 | 1.299 | 1.654 | 3.15 | 2.047 | M16x1.0mm |
| VC044J | 50 | CCT50 AD/B - SFH 3/4C - 6.30 | 0.75 | 1.299 | 1.654 | 6.3 | 2.047 | M16x1.0mm |
| VC046J | 50 | CCT50 AD/B - SFH 1C - 3.94 | 1 | 1.732 | 2.087 | 3.94 | 2.283 | M16x1.0mm |
| VC048J | 50 | CCT50 AD/B - SFH 1C - 6.30 | 1 | 1.732 | 2.087 | 6.3 | 2.283 | M16x1.0mm |
| VC050J | 50 | CCT50 AD/B - SFH 1 1/4C - 3.94 | 1.25 | 1.732 | 2.087 | 3.94 | 2.283 | M16x1.0mm |
| VC052J | 50 | CCT50 AD/B - SFH 1 1/4C - 6.30 | 1.25 | 1.732 | 2.087 | 6.3 | 2.283 | M16x1.0mm |
