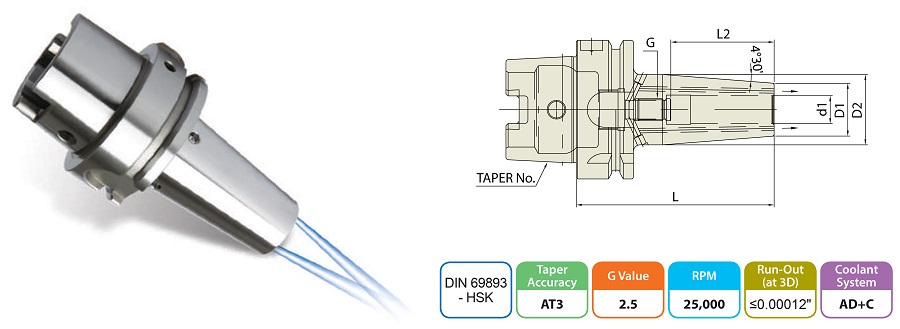

DUAL CONTACT SHRINK FIT HOLDER Coolant Channel Type HSK

DUAL CONTACT SHRINK FIT HOLDER Coolant Channel Type HSK

DUAL CONTACT SHRINK FIT HOLDER Coolant Channel Type HSK
EDP TAPER No. MODEL No. d1 D1 D2 L L2 G
VQ024J 63A HSK 63A - SFH 1/4C - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm
VQ026J 63A HSK 63A - SFH 1/4C - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
VQ028J 63A HSK 63A - SFH 3/8C - 3.35 0.375 0.945 1.260 3.350 1.654 M8x1.0mm
VQ030J 63A HSK 63A - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm
VQ032J 63A HSK 63A - SFH 1/2C - 3.54 0.500 0.945 1.260 3.540 1.850 M10x1.0mm
VQ034J 63A HSK 63A - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
VQ036J 63A HSK 63A - SFH 5/8C - 3.74 0.625 1.063 1.339 3.740 1.969 M12x1.0mm
VQ038J 63A HSK 63A - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
VQ040J 63A HSK 63A - SFH 3/4C - 3.94 0.750 1.299 1.654 3.940 2.047 M16x1.0mm
VQ042J 63A HSK 63A - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VQ046J 63A HSK 63A - SFH 1C - 4.53 1.000 1.732 2.087 4.530 2.283 M16x1.0mm
VQ048J 63A HSK 63A - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VR023J 100A HSK 100A - SFH 1/4C - 3.54 0.250 0.827 1.063 3.540 1.417 M5x0.8mm
VR024J 100A HSK 100A - SFH 3/8C - 3.54 0.375 0.945 1.260 3.540 1.654 M8x1.0mm
VR026J 100A HSK 100A - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm
VR028J 100A HSK 100A - SFH 1/2C - 3.74 0.500 0.945 1.260 3.740 1.850 M10x1.0mm
VR030J 100A HSK 100A - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
VR032J 100A HSK 100A - SFH 5/8C - 3.94 0.625 1.063 1.339 3.940 1.969 M12x1.0mm
VR034J 100A HSK 100A - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
VR036J 100A HSK 100A - SFH 3/4C - 4.13 0.750 1.299 1.654 4.130 2.047 M16x1.0mm
VR038J 100A HSK 100A - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VR040J 100A HSK 100A - SFH 1C - 4.53 1.000 1.732 2.087 4.530 2.283 M16x1.0mm
VR042J 100A HSK 100A - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VR044J 100A HSK 100A - SFH 1 1/4C - 4.72 1.250 1.732 2.087 4.720 2.283 M16x1.0mm
VR046J 100A HSK 100A - SFH 1 1/4C - 6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm
