DUAL CONTACT SIDE LOCK ARBOR CBT |
 |
| DUAL CONTACT SIDE LOCK ARBOR CBT |

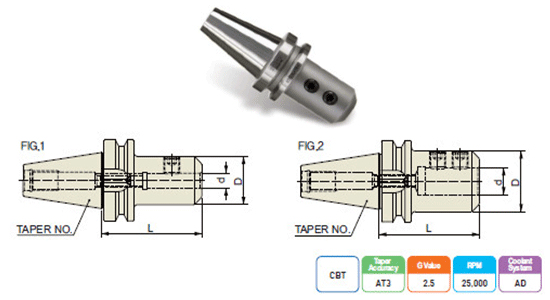

| TAPER No. | MODEL No. | d1 | D1 | L | FIG | EDP No. |
| 30 | CBT30 - SLA1/4-2.36 | 0.250 | 0.780 | 2.360 | 1 | AD020 |
| CBT30 - SLA5/16-2.36 | 0.313 | 0.880 | 2.360 | AD022 | ||
| CBT30 - SLA3/8-2.36 | 0.375 | 1.000 | 2.360 | 2 | AD024 | |
| CBT30 - SLA1/2-2.36 | 0.500 | 1.250 | 2.360 | AD026 | ||
| CBT30 - SLA5/8-2.95 | 0.625 | 1.500 | 2.950 | AD028 | ||
| CBT30 - SLA3/4-2.95 | 0.750 | 1.750 | 2.950 | AD030 | ||
| CBT30 - SLA1-2.95 | 1.000 | 2.000 | 2.950 | AD032 | ||
| 40 | CBT40 - SLA1/4-2.36 | 0.250 | 0.780 | 2.950 | 1 | AE020 |
| CBT40 - SLA5/16-2.36 | 0.313 | 0.880 | 2.950 | AE022 | ||
| CBT40 - SLA3/8-2.36 | 0.375 | 1.000 | 2.950 | 2 | AE024 | |
| CBT40 - SLA1/2-2.36 | 0.500 | 1.250 | 2.950 | AE026 | ||
| CBT40 - SLA5/8-3.54 | 0.625 | 1.500 | 3.540 | AE028 | ||
| CBT40 - SLA3/4-3.54 | 0.750 | 1.750 | 3.540 | AE030 | ||
| CBT40 - SLA1-3.54 | 1.000 | 2.000 | 3.540 | AE032 | ||
| CBT40 - SLA1-1/4-3.54 | 1.250 | 2.500 | 3.540 | AE034 |
