DUAL CONTACT SIDE LOCK ARBOR CCT |
 |
| DUAL CONTACT SIDE LOCK ARBOR CCT |

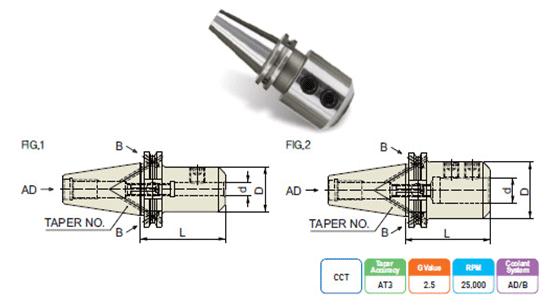

| TAPER No. | MODEL No. | d1 | D1 | L | FIG | EDP No. |
| CCT40 | CCT40AD/B - SLA1/4 - 2.36 | 0.250 | 0.780 | 2.360 | 1 | AB020 |
| CCT40AD/B - SLA5/16 - 2.36 | 0.313 | 0.880 | 2.360 | AB022 | ||
| CCT40AD/B - SLA3/8 - 2.36 | 0.375 | 1.000 | 2.360 | 2 | AB024 | |
| CCT40AD/B - SLA1/2 - 2.36 | 0.500 | 1.250 | 2.360 | AB026 | ||
| CCT40AD/B - SLA5/8 - 3.54 | 0.625 | 1.500 | 3.540 | AB028 | ||
| CCT40AD/B - SLA3/4 - 3.54 | 0.750 | 1.750 | 3.540 | AB030 | ||
| CCT40AD/B - SLA1 - 3.54 | 1.000 | 2.000 | 3.540 | AB032 | ||
| CCT40AD/B - SLA1 1/4- 3.54 | 1.250 | 2.500 | 3.540 | AB034 | ||
| CCT50 | CCT50AD/B - SLA1/4 - 3.54 | 0.250 | 0.780 | 3.540 | 1 | AC020 |
| CCT50AD/B - SLA5/16 - 3.54 | 0.313 | 0.880 | 3.540 | AC022 | ||
| CCT50AD/B - SLA3/8 - 3.54 | 0.375 | 1.000 | 3.540 | 2 | AC024 | |
| CCT50AD/B - SLA1/2 - 3.54 | 0.500 | 1.250 | 3.540 | AC026 | ||
| CCT50AD/B - SLA5/8 - 4.13 | 0.625 | 1.500 | 4.130 | AC028 | ||
| CCT50AD/B - SLA3/4 - 4.13 | 0.750 | 1.750 | 4.130 | AC030 | ||
| CCT50AD/B - SLA1 - 4.13 | 1.000 | 2.000 | 4.130 | AC032 | ||
| CCT50AD/B - SLA1 1/4 - 4.13 | 1.250 | 2.500 | 4.130 | AC034 |
