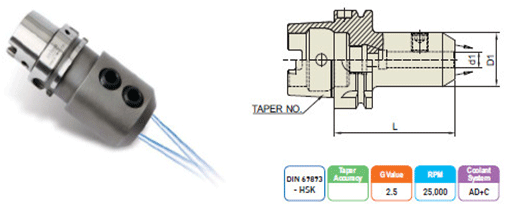

DUAL CONTACT SIDE LOCK ARBOR (SPRAY NOZZLE TYPE) HSK |
 |
| DUAL CONTACT SIDE LOCK ARBOR (SPRAY NOZZLE TYPE) HSK |
| TAPER No. | MODEL No. | d1 | D1 | L | EDP No. |
| 63A | HSK63A - EMH1/4C-2.56 | 0.250 | 0.780 | 2.560 | AQ020C |
| HSK63A - EMH5/16C-2.56 | 0.313 | 0.880 | 2.560 | AQ022C | |
| HSK63A - EMH3/8C-2.56 | 0.375 | 1.000 | 2.560 | AQ024C | |
| HSK63A - EMH1/2C-3.15 | 0.500 | 1.250 | 3.150 | AQ026C | |
| HSK63A - EMH5/8C-3.15 | 0.625 | 1.500 | 3.150 | AQ028C | |
| HSK63A - EMH3/4C-3.15 | 0.750 | 1.750 | 3.150 | AQ030C | |
| HSK63A - EMH1C-4.33 | 1.000 | 2.000 | 4.330 | AQ032C | |
| HSK63A - EMH1-1/4C-4.33 | 1.250 | 2.500 | 4.330 | AQ034C | |
| 100A | HSK100A - EMH1/4C-3.15 | 0.250 | 0.780 | 3.150 | AR020C |
| HSK100A - EMH5/16C-3.15 | 0.313 | 0.880 | 3.150 | AR022C | |
| HSK100A - EMH3/8C-3.15 | 0.375 | 1.000 | 3.150 | AR024C | |
| HSK100A - EMH1/2C-3.15 | 0.500 | 1.250 | 3.150 | AR026C | |
| HSK100A - EMH5/8C-3.94 | 0.625 | 1.500 | 3.940 | AR028C | |
| HSK100A - EMH3/4C-3.94 | 0.750 | 1.750 | 3.940 | AR030C | |
| HSK100A - EMH1C-3.94 | 1.000 | 2.000 | 3.940 | AR032C | |
| HSK100A - EMH1-1/4C-3.94 | 1.250 | 2.500 | 3.940 | AR034C |
