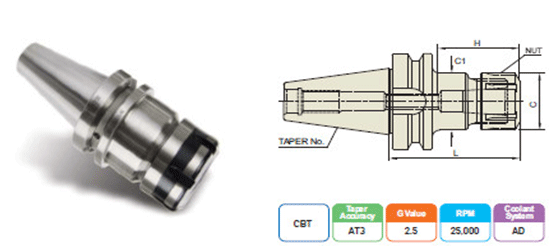

DUAL CONTACT SK SLIM CHUCK CBT

TAPER No.	MODEL No.	CLAMPING RANGE	L	C	C1	H		COLLET	EDP No.
TAPER No.	MODEL No.	CLAMPING RANGE	L	C	C1	MIN	MAX	COLLET	EDP No.
30	CBT30-SKA06-60	0.9-6.0	60	20	19.5	21	35	SKC6	TD100
	CBT30-SKA06-90	0.9-6.0	90	20	19.5	21	35	SKC6	TD102
	CBT30-SKA10-60	1.75-10.0	60	28	27.5	30	50	SKC10	TD104
	CBT30-SKA10-90	1.75-10.0	90	28	27.5	30	50	SKC10	TD106
	CBT30-SKA13-60	2.75-13.0	60	33	33	31	65	SKC13	TD108
	CBT30-SKA13-90	2.75-13.0	90	33	33	31	65	SKC13	TD110
	CBT30-SKA16-60	2.75-16.0	60	40	40	45	60	SKC16	TD112
	CBT30-SKA16-90	2.75-16.0	90	40	40	45	60	SKC16	TD114
	CBT30-SKA20-60	4.0-20.0	60	48.5	48.5	65	75	SKC20	TD116
	CBT30-SKA20-90	4.0-20.0	90	48.5	48.5	65	75	SKC20	TD118
	CBT30-SKA25-90	16.0-25.4	90	55	55	65	75	SKC25	TD120
40	CBT40-SKA06-90	0.9-6.0	90	20	19.5	21	35	SKC6	TE101
	CBT40-SKA06-120	0.9-6.0	120	20	19.5	21	35	SKC6	TE102
	CBT40-SKA06-150	0.9-6.0	150	20	19.5	21	35	SKC6	TE104
	CBT40-SKA10-90	1.75-10.0	90	28	27.5	30	50	SKC10	TE106
	CBT40-SKA10-120	1.75-10.0	120	28	27.5	30	50	SKC10	TE108
	CBT40-SKA10-150	1.75-10.0	150	33	27.5	30	50	SKC10	TE110
	CBT40-SKA13-90	2.75-13.0	90	33	33	31	65	SKC13	TE112
	CBT40-SKA13-120	2.75-13.0	120	33	33	31	65	SKC13	TE114
	CBT40-SKA13-150	2.75-13.0	150	33	40	31	65	SKC13	TE116
	CBT40-SKA16-90	2.75-16.0	90	40	40	45	70	SKC16	TE118
	CBT40-SKA16-120	2.75-16.0	120	40	40	45	70	SKC16	TE121
	CBT40-SKA16-150	2.75-16.0	150	40	40	45	70	SKC16	TE122
	CBT40-SKA20-90	4.0-20.0	90	48.5	48.5	47	80	SKC20	TE124
	CBT40-SKA20-120	4.0-20.0	120	48.5	48.5	47	80	SKC20	TE126
	CBT40-SKA20-150	4.0-20.0	150	48.5	48.5	47	80	SKC20	TE128
	CBT40-SKS25-90	16.0-25.4	90	55	55	55	85	SKC25	TE130
	CBT40-SKA25-120	16.0-25.4	120	55	55	55	85	SKC25	TE132
	CBT40-SKA25-150	16.0-25.4	150	55	55	55	85	SKC25	TE134
