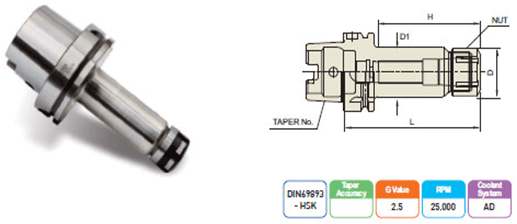

DUAL CONTACT SK SLIM CHUCK HSK |
 |
| DUAL CONTACT SK SLIM CHUCK HSK |
| TAPER No. | MODEL No. | CLAMPING RANGE | L | C | C1 | H | COLLET | EDP No. | |
| MIN | MAX | ||||||||
| 63A | HSK63A-SKA06-100 | 0.75-6.0 | 20 | 19.5 | 100 | 21 | 35 | SKC6 | TQ100 |
| HSK63A-SKA10-100 | 1.75-10.0 | 28 | 27.5 | 100 | 30 | 50 | SKC10 | TQ102 | |
| HSK63A-SKA13-100 | 2.75-13.0 | 33 | 33 | 100 | 31 | 65 | SKC13 | TQ104 | |
| HSK63A-SKA16-120 | 2.75-16.0 | 40 | 40 | 120 | 45 | 70 | SKC16 | TQ106 | |
| HSK63A-SKA20-120 | 4.0-20.0 | 48.5 | 48.5 | 120 | 65 | 75 | SKC20 | TQ108 | |
| HSK63A-SKA25-150 | 16.0-25.4 | 55 | 55 | 150 | 55 | 85 | SKC25 | TQ110 | |
| 100A | HSK100A-SKA06-120 | 0.75-6.0 | 20 | 19.5 | 120 | 21 | 35 | SKC6 | TR100 |
| HSK100A-SKA10-150 | 1.75-10.0 | 28 | 27.5 | 150 | 30 | 50 | SKC10 | TR102 | |
| HSK100A-SKA13-150 | 2.75-13.0 | 33 | 40 | 150 | 31 | 65 | SKC13 | TR104 | |
| HSK100A-SKA16-150 | 2.75-16.0 | 40 | 40 | 150 | 45 | 70 | SKC16 | TR106 | |
| HSK100A-SKA20-150 | 4.0-20.0 | 48.5 | 48.5 | 150 | 65 | 75 | SKC20 | TR108 | |
| HSK100A-SKA25-160 | 16.0-25.4 | 55 | 55 | 150 | 55 | 85 | SKC25 | TR110 | |
