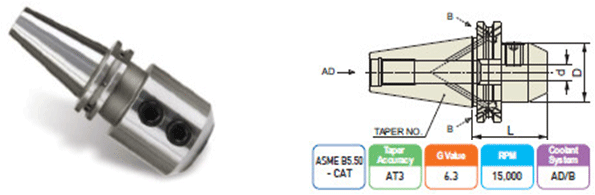

END MILL HOLDER EXTENDED CAT |
 |
| END MILL HOLDER EXTENDED CAT |
| TAPER No. | MODEL No. | d | L | D | EDP No. |
| CAT40 | CAT40AD/B - EMH 3/8 - 4.50 | 0.375 | 4.50 | 1.00 | AK104B |
| CAT40AD/B - EMH 1/2 - 4.63 | 0.500 | 4.63 | 1.25 | AK106B | |
| CAT40AD/B - EMH 5/8 - 5.75 | 0.625 | 5.75 | 1.50 | AK108B | |
| CAT40AD/B - EMH 3/4 - 5.75 | 0.750 | 5.75 | 1.75 | AK110B | |
| CAT40AD/B - EMH 7/8 - 6.00 | 0.875 | 6.00 | 1.88 | AK112B | |
| CAT40AD/B - EMH 1 - 6.00 | 1.000 | 6.00 | 2.00 | AK114B | |
| CAT40AD/B - EMH 1 1/4 - 6.25 | 1.250 | 6.25 | 2.50 | AK117B | |
| CAT40AD/B - EMH 1 1/2 - 6.63 | 1.500 | 6.63 | 2.50 | AK121B | |
| CAT50 | CAT50AD/B - EMH 3/8 - 4.50 | 0.375 | 4.50 | 1.00 | AL104B |
| CAT50AD/B - EMH 1/2 - 4.63 | 0.500 | 4.63 | 1.25 | AL106B | |
| CAT50AD/B - EMH 5/8 - 5.75 | 0.625 | 5.75 | 1.50 | AL108B | |
| CAT50AD/B - EMH 3/4 - 5.75 | 0.750 | 5.75 | 1.75 | AL110B | |
| CAT50AD/B - EMH 7/8 - 5.75 | 0.875 | 5.75 | 1.88 | AL112B | |
| CAT50AD/B - EMH 1 - 6.00 | 1.000 | 6.00 | 2.00 | AL114B | |
| CAT50AD/B - EMH 1 1/4 - 6.00 | 1.250 | 6.00 | 2.50 | AL117B | |
| CAT50AD/B - EMH 1 1/2 - 6.00 | 1.500 | 6.00 | 2.50 | AL121B | |
| CAT50AD/B - EMH 2 - 7.63 | 2.000 | 7.63 | 3.75 | AL129B |
