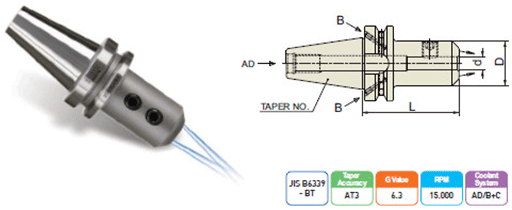

END MILL HOLDER (SPRAY NOZZLE TYPE) BT |
 |
| END MILL HOLDER (SPRAY NOZZLE TYPE) BT |
| TAPER No. | MODEL No. | d | L | D | EDP No. |
| BT40 | BT40AD/B - EMH 1/4C-1.97 | 0.250 | 1.970 | 0.780 | AH002C |
| BT40 AD/B- EMH 5/16C-1.97 | 0.313 | 1.970 | 0.880 | AH003C | |
| BT40AD/B - EMH 3/8C-2.48 | 0.375 | 2.480 | 1.000 | AH004C | |
| BT40AD/B - EMH 1/2C-2.48 | 0.500 | 2.480 | 1.250 | AH006C | |
| BT40AD/B - EMH 5/8C-2.48 | 0.625 | 2.480 | 1.500 | AH008C | |
| BT40AD/B - EMH 3/4C-2.48 | 0.750 | 2.480 | 1.750 | AH010C | |
| BT40AD/B - EMH 1C-3.54 | 1.000 | 3.540 | 2.000 | AH012C | |
| BT40AD/B - EMH 1-1/4C-3.93 | 1.250 | 3.930 | 2.500 | AH014C |
