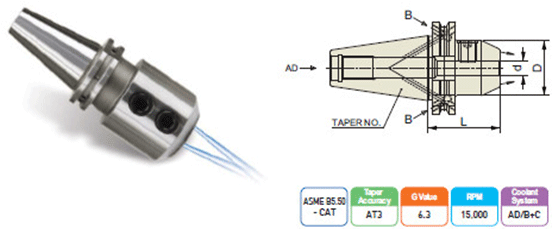

END MILL HOLDER (SPRAY NOZZLE TYPE) CAT |
 |
| END MILL HOLDER (SPRAY NOZZLE TYPE) CAT |
| TAPER No. | MODEL No. | d | L | D | EDP No. |
| CAT40 | CAT40AD/B - EMH 1/4C-1.97 | 0.250 | 1.970 | 0.780 | AK002C |
| CAT40AD/B - EMH 5/16C-1.97 | 0.313 | 1.970 | 0.880 | AK003C | |
| CAT40AD/B - EMH 3/8C-1.97 | 0.375 | 1.970 | 1.000 | AK004C | |
| CAT40AD/B - EMH 1/2C-1.97 | 0.500 | 1.970 | 1.250 | AK005C | |
| CAT40AD/B - EMH 5/8C-2.48 | 0.625 | 2.480 | 1.500 | AK008C | |
| CAT40AD/B - EMH 3/4C-2.48 | 0.750 | 2.480 | 1.750 | AK010C | |
| CAT40AD/B - EMH 1C-3.93 | 1.000 | 3.930 | 2.000 | AK012C | |
| CAT40AD/B - EMH 1 1/4C-3.93 | 1.250 | 3.930 | 2.500 | AK017C | |
| CAT50 | CAT50AD/B - EMH 1/4C-2.48 | 0.250 | 2.480 | 0.780 | AL002C |
| CAT50AD/B - EMH 5/16C-2.48 | 0.313 | 2.480 | 0.880 | AL003C | |
| CAT50AD/B - EMH 3/8C-2.48 | 0.375 | 2.480 | 1.000 | AL004C | |
| CAT50AD/B - EMH 1/2C-2.48 | 0.500 | 2.480 | 1.250 | AL005C | |
| CAT50AD/B - EMH 5/8C-2.48 | 0.625 | 2.480 | 1.500 | AL008C | |
| CAT50AD/B - EMH 3/4C-2.48 | 0.750 | 2.480 | 1.750 | AL010C | |
| CAT50AD/B - EMH 1C-3.15 | 1.000 | 3.150 | 2.000 | AL012C | |
| CAT50AD/B - EMH 1 1/4C-3.93 | 1.250 | 3.930 | 2.500 | AL017C |
