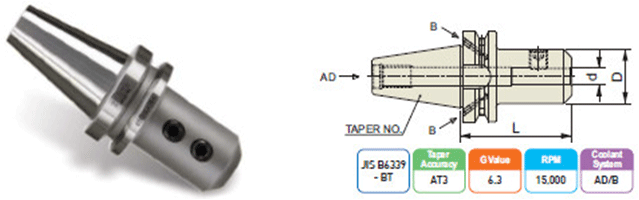

END MILL HOLDER STANDARD & EXTENDED BT |
 |
| END MILL HOLDER (SPRAY NOZZLE TYPE) CAT |
| TAPER No. | MODEL No. | d | L | D | EDP No. |
| 40 | BT40AD/B - EMH 1/8 - 2.50 | 0.125 | 2.50 | 0.69 | AH000B |
| BT40AD/B - EMH 3/16 - 2.50 | 0.187 | 2.50 | 0.69 | AH001B | |
| BT40AD/B - EMH 1/4 - 2.50 | 0.250 | 2.50 | 0.78 | AH002B | |
| BT40AD/B - EMH 5/16 - 2.50 | 0.312 | 2.50 | 0.88 | AH003B | |
| BT40AD/B - EMH 3/8 - 2.50 | 0.375 | 2.50 | 1.00 | AH004B | |
| BT40AD/B - EMH 7/16 - 2.50 | 0.437 | 2.50 | 1.13 | AH005B | |
| BT40AD/B - EMH 1/2 - 2.50 | 0.500 | 2.50 | 1.25 | AH006B | |
| BT40AD/B - EMH 5/8 - 2.50 | 0.625 | 2.50 | 1.50 | AH008B | |
| BT40AD/B - EMH 3/4 - 2.50 | 0.750 | 2.50 | 1.75 | AH010B | |
| BT40AD/B - EMH 7/8 - 3.50 | 0.875 | 3.50 | 1.88 | AH012B | |
| BT40AD/B - EMH 1 - 3.75 | 1.000 | 3.75 | 2.00 | AH014B | |
| BT40AD/B - EMH 1 1/4 - 3.75 | 1.250 | 3.75 | 2.50 | AH017B | |
| BT40AD/B - EMH 1 1/2 - 4.25 | 1.500 | 4.25 | 2.50 | AH021B | |
| 40 | BT40AD/B - EMH 3/8 - 4.00 | 0.375 | 4.00 | 1.00 | AH104B |
| BT40AD/B - EMH 1/2 - 4.00 | 0.500 | 4.00 | 1.25 | AH106B | |
| BT40AD/B - EMH 5/8 - 4.00 | 0.625 | 4.00 | 1.50 | AH108B | |
| BT40AD/B - EMH 3/4 - 4.00 | 0.750 | 4.00 | 1.75 | AH110B | |
| BT40AD/B - EMH 1 - 5.00 | 1.000 | 5.00 | 2.00 | AH114B | |
| BT40AD/B - EMH 1 1/4 - 5.00 | 1.250 | 5.00 | 2.50 | AH117B | |
| BT40AD/B - EMH 1 1/2 - 6.00 | 1.500 | 6.00 | 2.50 | AH121B |
