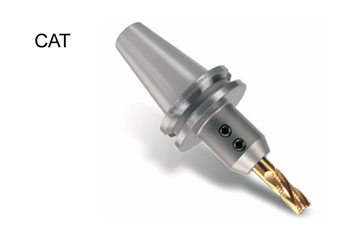

END MILL HOLDERS |
|
 |
 |
| STUB END MILL HOLDER |

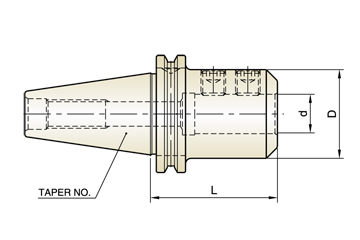

| EDP No. | Type | Taper No. | d | L | D |
| AK206 | CAT 40-EMH1/2-1.75 | 40 | .500 | 1.75 | 1.25 |
| AK208 | CAT 40-EMH5/8-1.75 | 40 | .625 | 1.75 | 1.50 |
| AK210 | CAT 40-EMH3/4-1.75 | 40 | .750 | 1.75 | 1.75 |
| AK214 | CAT 40-EMH1"-1.75 | 40 | 1.000 | 1.75 | 1.75 |
| AK217 | CAT 40-EMH1 1/4-2.00 | 40 | 1.250 | 2.00 | 2.25 |
| STANDARD END MILL HOLDER |
| EDP No. | Type | Taper No. | d | L | D |
| AK000 | CAT 40-EMH1/8-2.50 | 40 | 0.125 | 2.5 | 0.69 |
| AK001 | CAT 40-EMH3/16-2.50 | 40 | 0.187 | 2.5 | 0.69 |
| AK002 | CAT 40-EMH1/4-2.50 | 40 | 0.25 | 2.5 | 0.78 |
| AK003 | CAT 40-EMH5/16-2.50 | 40 | 0.312 | 2.5 | 0.88 |
| AK004 | CAT 40-EMH3/8-2.50 | 40 | 0.375 | 2.5 | 1 |
| AK005 | CAT 40-EMH7/16-2.50 | 40 | 0.437 | 2.5 | 1.13 |
| AK006 | CAT 40-EMH1/2-2.63 | 40 | 0.5 | 2.63 | 1.25 |
| AK008 | CAT 40-EMH5/8-3.75 | 40 | 0.625 | 3.75 | 1.5 |
| AK010 | CAT 40-EMH3/4-3.75 | 40 | 0.75 | 3.75 | 1.75 |
| AK012 | CAT 40-EMH7/8-4.00 | 40 | 0.875 | 4 | 1.88 |
| AK014 | CAT 40-EMH 1"-4.00 | 40 | 1 | 4 | 2 |
| AK017 | CAT 40-EMH1*1/4-4.25 | 40 | 1.25 | 4.25 | 2.5 |
| AK021 | CAT 40-EMH1*1/2-4.63 | 40 | 1.5 | 4.63 | 2.5 |
| AL002 | CAT 50-EMH1/4-2.50 | 50 | 0.25 | 2.5 | 0.78 |
| AL003 | CAT 50-EMH5/16-2.50 | 50 | 0.312 | 2.5 | 0.88 |
| AL004 | CAT 50-EMH3/8-2.50 | 50 | 0.375 | 2.5 | 1 |
| AL005 | CAT 50-EMH7/16-2.63 | 50 | 0.437 | 2.63 | 1.13 |
| AL006 | CAT 50-EMH1/2-2.63 | 50 | 0.5 | 2.63 | 1.25 |
| AL008 | CAT 50-EMH5/8-3.75 | 50 | 0.625 | 3.75 | 1.5 |
| AL010 | CAT 50-EMH3/4-3.75 | 50 | 0.75 | 3.75 | 1.75 |
| AL012 | CAT 50-EMH7/8-3.75 | 50 | 0.875 | 3.75 | 1.88 |
| AL014 | CAT 50-EMH 1"-4.00 | 50 | 1 | 4 | 2 |
| AL017 | CAT 50-EMH1*1/4-4.00 | 50 | 1.25 | 4 | 2.5 |
| AL021 | CAT 50-EMH1*1/2-4.00 | 50 | 1.5 | 4 | 2.5 |
| AL029 | CAT 50-EMH 2"-5.63 | 50 | 2 | 5.63 | 3.75 |
| EXTENDED END MILL HOLDER |
| EDP No. | Type | Taper No. | d | L | D |
| AK104 | CAT 40-EMH3/8-4.50 | 40 | 0.375 | 4.5 | 1 |
| AK106 | CAT 40-EMH1/2-4.63 | 40 | 0.5 | 4.63 | 1.25 |
| AK108 | CAT 40-EMH5/8-5.75 | 40 | 0.625 | 5.75 | 1.5 |
| AK110 | CAT 40-EMH3/4-5.75 | 40 | 0.75 | 5.75 | 1.75 |
| AK112 | CAT 40-EMH7/8-6.00 | 40 | 0.875 | 6 | 1.88 |
| AK114 | CAT 40-EMH 1"-6.00 | 40 | 1 | 6 | 2 |
| AK117 | CAT 40-EMH1*1/4-6.25 | 40 | 1.25 | 6.25 | 2.5 |
| AK121 | CAT 40-EMH1*1/2-6.63 | 40 | 1.5 | 6.63 | 2.5 |
| AL104 | CAT 50-EMH3/8-4.50 | 50 | 0.375 | 4.5 | 1 |
| AL106 | CAT 50-EMH1/2-4.63 | 50 | 0.5 | 4.63 | 1.25 |
| AL108 | CAT 50-EMH5/8-5.75 | 50 | 0.625 | 5.75 | 1.5 |
| AL110 | CAT 50-EMH3/4-5.75 | 50 | 0.75 | 5.75 | 1.75 |
| AL112 | CAT 50-EMH7/8-5.75 | 50 | 0.875 | 5.75 | 1.88 |
| AL114 | CAT 50-EMH 1"-6.00 | 50 | 1 | 6 | 2 |
| AL117 | CAT 50-EMH1*1/4-6.00 | 50 | 1.25 | 6 | 2.5 |
| AL121 | CAT 50-EMH1*1/2-6.00 | 50 | 1.5 | 6 | 2.5 |
| AL129 | CAT 50-EMH 2"-7.63 | 50 | 2 | 7.63 | 3.75 |
