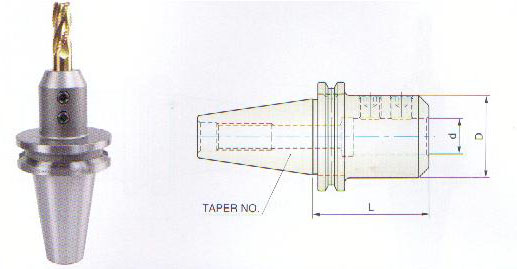

END MILL HOLDERS HIGH BALANCED SERIES |
 |
| HIGH BALANCED STUB END MILL HOLDER |
| EDP No. | Type | Taper No. | d | L | D |
| AH206B25 | BT 40-EMH1/2-1.25 | 40 | 0.500 | 1.25 | 1.25 |
| AH208B25 | BT 40-EMH5/8-1.38 | 40 | 0.625 | 1.38 | 1.50 |
| AH210B25 | BT 40-EMH3/4-1.44 | 40 | 0.750 | 1.44 | 1.75 |
| AH214B25 | BT 40-EMH 1" -2.50 | 40 | 1.000 | 2.50 | 2.00 |
| AH217B25 | BT 40-EMH1*1/4-2.50 | 40 | 1.250 | 2.50 | 2.50 |
| HIGH BALANCED STANDARD END MILL HOLDER |
| EDP No. | Type | Taper No. | d | L | D |
| AH000B25 | BT 40-EMH1/8-2.50 | 40 | 0.125 | 2.50 | 0.69 |
| AH001B25 | BT 40-EMH3/16-2.50 | 40 | 0.187 | 2.50 | 0.69 |
| AH002B25 | BT 40-EMH1/4-2.50 | 40 | 0.250 | 2.50 | 0.78 |
| AH003B25 | BT 40-EMH5/16-2.50 | 40 | 0.312 | 2.50 | 0.88 |
| AH004B25 | BT 40-EMH3/8-2.50 | 40 | 0.375 | 2.50 | 1.00 |
| AH005B25 | BT 40-EMH7/16-2.50 | 40 | 0.437 | 2.50 | 1.13 |
| AH006B25 | BT 40-EMH1/2-2.50 | 40 | 0.500 | 2.50 | 1.25 |
| AH008B25 | BT 40-EMH5/8-2.50 | 40 | 0.625 | 2.50 | 1.50 |
| AH010B25 | BT 40-EMH3/4-2.50 | 40 | 0.750 | 2.50 | 1.75 |
| AH012B25 | BT 40-EMH7/8-3.50 | 40 | 0.875 | 3.50 | 1.88 |
| AH014B25 | BT 40-EMH 1"-3.75 | 40 | 1.000 | 3.75 | 2.00 |
| AH017B25 | BT 40-EMH1*1/4-3.75 | 40 | 1.250 | 3.75 | 2.50 |
| AH021B25 | BT 40-EMH1*1/2-4.25 | 40 | 1.500 | 4.25 | 2.50 |
| HIGH BALANCED EXTENDED END MILL HOLDER |
| EDP No. | Type | Taper No. | d | L | D |
| AH104B25 | BT 40-EMH3/8-4.00 | 40 | 0.375 | 4.00 | 1.00 |
| AH106B25 | BT 40-EMH1/2-4.00 | 40 | 0.500 | 4.00 | 1.25 |
| AH108B25 | BT 40-EMH5/8-4.00 | 40 | 0.625 | 4.00 | 1.50 |
| AH110B25 | BT 40-EMH3/4-4.00 | 40 | 0.750 | 4.00 | 1.75 |
| AH114B25 | BT 40-EMH 1"-5.00 | 40 | 1.000 | 5.00 | 2.00 |
| AH117B25 | BT 40-EMH1*1/4-5.00 | 40 | 1.250 | 5.00 | 2.50 |
| AH121B25 | BT 40-EMH1*1/2-6.00 | 40 | 1.500 | 6.00 | 2.50 |
