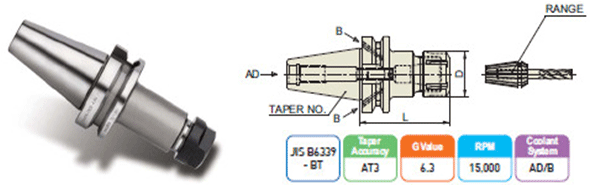

ER COLLET CHUCK BT |
 |
| ER COLLET CHUCK BT |
| TAPER No. | MODEL No. | CLAMPING RANGE | L | D | COLLET SERIES | EDP No. |
| STUB | Unit: inch | |||||
| TAPER No. | MODEL No. | CLAMPING RANGE | L | D | COLLET SERIES | EDP No. |
| 40 | BT40AD/B - ER20 - 2.20 | 0.039-0.511 | 2.20 | 1.26 | ER20 | BH232B |
| BT40AD/B - ER25 - 2.50 | 0.039-0.629 | 2.50 | 1.65 | ER25 | BH233B | |
| BT40AD/B - ER32 - 2.40 | 0.078-0.787 | 2.40 | 1.88 | ER32 | BH234B | |
| STANDARD | Unit: inch | |||||
| TAPER No. | MODEL No. | CLAMPING RANGE | L | D | COLLET SERIES | EDP No. |
| 40 | BT40 AD/B - ER11 - 3.00 | 0.063-0.250 | 3.00 | 0.63 | ER11 | BH030B |
| BT40 AD/B - ER16 - 3.00 | 0.031-0.406 | 3.00 | 1.08 | ER16 | BH031B | |
| BT40 AD/B - ER20 - 4.00 | 0.039-0.511 | 4.00 | 1.26 | ER20 | BH032B | |
| BT40 AD/B - ER25 - 4.00 | 0.039-0.629 | 4.00 | 1.65 | ER25 | BH133B | |
| BT40 AD/B - ER32 - 4.00 | 0.078-0.787 | 4.00 | 1.88 | ER32 | BH134B | |
| BT40 AD/B - ER40 - 4.00 | 0.118-1.024 | 4.00 | 2.48 | ER40 | BH136B | |
| EXTENDED | Unit: inch | |||||
| TAPER No. | MODEL No. | CLAMPING RANGE | L | D | COLLET SERIES | EDP No. |
| 40 | BT40 AD/B - ER16 - 6.00 | 0.031-0.406 | 6.00 | 1.08 | ER16 | BH331B |
| BT40 AD/B - ER20 - 6.00 | 0.039-0.511 | 6.00 | 1.26 | ER20 | BH332B | |
| BT40 AD/B - ER25 - 6.00 | 0.039-0.629 | 6.00 | 1.65 | ER25 | BH333B | |
| BT40 AD/B - ER32 - 6.00 | 0.078-0.787 | 6.00 | 1.88 | ER32 | BH334B | |
| EXTENDED | Unit: inch | |||||
| TAPER No. | MODEL No. | CLAMPING RANGE | L | D | COLLET SERIES | EDP No. |
| 40 | BT40 AD/B- ER20 - 8.00 | 0.039-0.511 | 8.00 | 1.26 | ER20 | BH432B |
