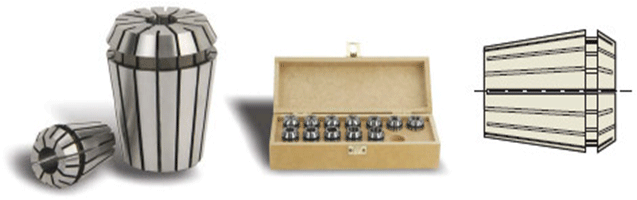

ER COLLET (METRIC TYPE) |
 |
| ER COLLET (METRIC TYPE) |
| TYPE ER8 | CLAMPING CAPACITY |
| 208010 | 1.0-0.5 |
| 208015 | 1.5-1.0 |
| 208020 | 2.0-1.5 |
| 208025 | 2.5-2.0 |
| 208030 | 3.0-2.5 |
| 208035 | 3.5-3.0 |
| 208040 | 4.0-3.5 |
| 208045 | 4.5-4.0 |
| 208050 | 5.0-4.5 |
| 208000 | STANDARD SET (Φ1.0 to 5.0mm) 9pcs |
| TYPE ER11 | CLAMPING CAPACITY |
| 211010 | 1.0-0.5 |
| 211015 | 1.5-1.0 |
| 211020 | 2.0-1.5 |
| 211025 | 2.5-2.0 |
| 211030 | 3.0-2.5 |
| 211035 | 3.5-3.0 |
| 211040 | 4.0-3.5 |
| 211045 | 4.5-4.0 |
| 211050 | 5.0-4.5 |
| 211055 | 5.5-5.0 |
| 211060 | 6.0-5.5 |
| 211065 | 6.5-6.0 |
| 211070 | 7.0-6.5 |
| 211000 | STANDARD SET (Φ1.0 to 7.0mm) 13pcs |
| TYPE ER16 | CLAMPING CAPACITY |
| 216010 | 1.0-0.5 |
| 216015 | 1.5-1.0 |
| 216020 | 2.0-1.0 |
| 216025 | 2.5-2.0 |
| 216030 | 3.0-2.0 |
| 216040 | 4.0-3.0 |
| 216050 | 5.0-4.0 |
| 216060 | 6.0-5.0 |
| 216070 | 7.0-6.0 |
| 216080 | 8.0-7.0 |
| 216090 | 9.0-8.0 |
| 216100 | 10.0-9.0 |
| 216000 | STANDARD SET (Φ1.0 to 10.0mm) 10pcs |
| TYPE ER20 | CLAMPING CAPACITY |
| 220010 | 1.0-0.5 |
| 220015 | 1.5-1.0 |
| 220020 | 2.0-1.0 |
| 220025 | 2.5-2.0 |
| 220030 | 3.0-2.0 |
| 220040 | 4.0-3.0 |
| 220050 | 5.0-4.0 |
| 220060 | 6.0-5.0 |
| 220070 | 7.0-6.0 |
| 220080 | 8.0-7.0 |
| 220090 | 9.0-8.0 |
| 220100 | 10.0-9.0 |
| 220110 | 11.0-10.0 |
| 220120 | 12.0-11.0 |
| 220130 | 13.0-12.0 |
| 220000 | STANDARD SET (Φ2.0 to 13.0mm) 12pcs |
| TYPE ER25 | CLAMPING CAPACITY |
| 225010 | 1.0-0.5 |
| 225015 | 1.5-1.0 |
| 225020 | 2.0-1.0 |
| 225025 | 2.5-2.0 |
| 225030 | 3.0-2.0 |
| 225040 | 4.0-3.0 |
| 225050 | 5.0-4.0 |
| 225060 | 6.0-5.0 |
| 225070 | 7.0-6.0 |
| 225080 | 8.0-7.0 |
| 225090 | 9.0-8.0 |
| 225100 | 10.0-9.0 |
| 225110 | 11.0-10.0 |
| 225120 | 12.0-11.0 |
| 225130 | 13.0-12.0 |
| 225140 | 14.0-13.0 |
| 225150 | 15.0-14.0 |
| 225160 | 16.0-15.0 |
| 225000 | STANDARD SET (Ø 2.0-16.0mm) 15pcs |
| TYPE ER32 | CLAMPING CAPACITY |
| 232020 | 2.0-1.0 |
| 232025 | 2.5-2.0 |
| 232030 | 3.0-2.0 |
| 232040 | 4.0-3.0 |
| 232050 | 5.0-4.0 |
| 232060 | 6.0-5.0 |
| 232070 | 7.0-6.0 |
| 232080 | 8.0-7.0 |
| 232090 | 9.0-8.0 |
| 232100 | 10.0-9.0 |
| 232110 | 11.0-10.0 |
| 232120 | 12.0-11.0 |
| 232130 | 13.0-12.0 |
| 232140 | 14.0-13.0 |
| 232150 | 15.0-14.0 |
| 232160 | 16.0-15.0 |
| 232170 | 17.0-16.0 |
| 232180 | 18.0-17.0 |
| 232190 | 19.0-18.0 |
| 232200 | 20.0-19.0 |
| 232000 | STANDARD SET (Ø 3.0-20.0mm) 18pcs |
| TYPE ER40 | CLAMPING CAPACITY |
| 240030 | 3.0-2.0 |
| 240040 | 4.0-3.0 |
| 240050 | 5.0-4.0 |
| 240060 | 6.0-5.0 |
| 240070 | 7.0-6.0 |
| 240080 | 8.0-7.0 |
| 240090 | 9.0-8.0 |
| 240100 | 10.0-9.0 |
| 240110 | 11.0-10.0 |
| 240120 | 12.0-11.0 |
| 240130 | 13.0-12.0 |
| 240140 | 14.0-13.0 |
| 240150 | 15.0-14.0 |
| 240160 | 16.0-15.0 |
| 240170 | 17.0-16.0 |
| 240180 | 18.0-17.0 |
| 240190 | 19.0-18.0 |
| 240200 | 20.0-19.0 |
| 240210 | 21.0-20.0 |
| 240220 | 22.0-21.0 |
| 240230 | 23.0-22.0 |
| 240240 | 24.0-23.0 |
| 240250 | 25.0-24.0 |
| 240260 | 26.0-25.0 |
| 240270 | 27.0-26.0 |
| 240280 | 28.0-27.0 |
| 240290 | 29.0-28.0 |
| 240300 | 30.0-29.0 |
| 240000 | STANDARD SET (Ø 4.0-26.0mm) 23pcs |
| TYPE ER50 | CLAMPING CAPACITY |
| 250060 | 6.0-4.0 |
| 250080 | 8.0-6.0 |
| 250100 | 10.0-8.0 |
| 250120 | 12.0-10.0 |
| 250140 | 14.0-12.0 |
| 250160 | 16.0-14.0 |
| 250180 | 18.0-16.0 |
| 250200 | 20.0-18.0 |
| 250220 | 22.0-20.0 |
| 250240 | 24.0-22.0 |
| 250250 | 25.0-23.0 |
| 250260 | 26.0-24.0 |
| 250280 | 28.0-26.0 |
| 250300 | 30.0-28.0 |
| 250320 | 32.0-30.0 |
| 250340 | 34.0-32.0 |
| 250000 | STANDARD SET (Ø 12.0-34.0mm) 12pcs |
