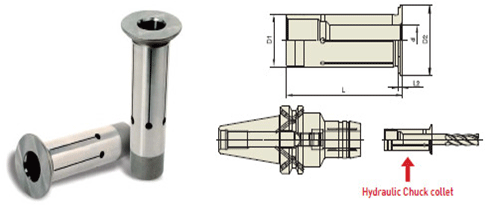

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:CLOSED TYPE) INCH/INCH |
 |
| HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:CLOSED TYPE) INCH/INCH |
| TYPE | d | D1 | D2 | L | L2 | EDP No. | |
| HS1/2" | 1/8" | 0.125 | 0.500 | 0.748 | 1.850 | 0.079 | 712108 |
| 3/16" | 0.188 | 0.500 | 0.748 | 1.850 | 0.079 | 712316 | |
| 1/4" | 0.250 | 0.500 | 0.748 | 1.850 | 0.079 | 712104 | |
| 5/16" | 0.313 | 0.500 | 0.748 | 1.850 | 0.079 | 712516 | |
| HS3/4" | 1/8" | 0.125 | 0.750 | 0.945 | 1.988 | 0.079 | 725108 |
| 3/16" | 0.188 | 0.750 | 0.945 | 1.988 | 0.079 | 725316 | |
| 1/4" | 0.250 | 0.750 | 0.945 | 1.988 | 0.079 | 725104 | |
| 5/16" | 0.313 | 0.750 | 0.945 | 1.988 | 0.079 | 725516 | |
| 3/8" | 0.375 | 0.750 | 0.945 | 1.988 | 0.079 | 725308 | |
| 1/2" | 0.500 | 0.750 | 0.945 | 1.988 | 0.079 | 725102 | |
| 5/8" | 0.625 | 0.750 | 0.945 | 1.988 | 0.079 | 725508 | |
| HS1 1/4" | 1/8" | 0.125 | 1.250 | 1.417 | 2.382 | 0.118 | 732108 |
| 3/16" | 0.188 | 1.250 | 1.417 | 2.382 | 0.118 | 732316 | |
| 1/4" | 0.250 | 1.250 | 1.417 | 2.382 | 0.118 | 732104 | |
| 5/16" | 0.313 | 1.250 | 1.417 | 2.382 | 0.118 | 732516 | |
| 3/8" | 0.375 | 1.250 | 1.417 | 2.382 | 0.118 | 732308 | |
| 1/2" | 0.500 | 1.250 | 1.417 | 2.382 | 0.118 | 732102 | |
| 5/8" | 0.625 | 1.250 | 1.417 | 2.382 | 0.118 | 732508 | |
| 3/4" | 0.750 | 1.250 | 1.417 | 2.382 | 0.118 | 732304 | |
| 1 | 1.000 | 1.250 | 1.417 | 2.382 | 0.118 | 732100 |
