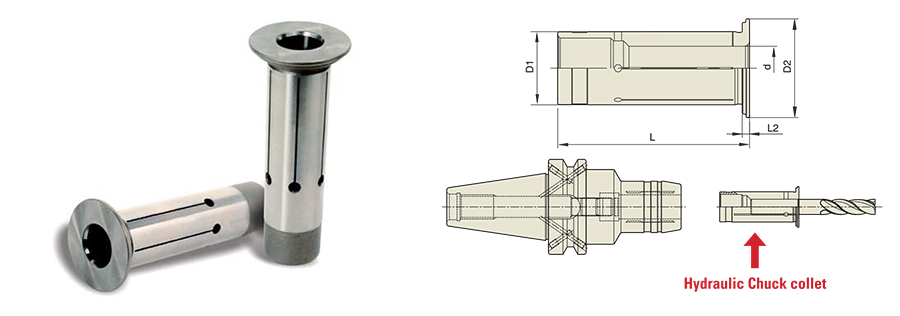

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE: CLOSED TYPE) INCH/METRIC |
 |
| HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE: CLOSED TYPE) INCH/METRIC |
| EDP | TYPE | d | D1 | D2 | L | L2 | |
| 111203 | HS 1/2" | 3 | 3mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 111204 | HS 1/2" | 4 | 4mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 111205 | HS 1/2" | 5 | 5mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 111206 | HS 1/2" | 6 | 6mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 111208 | HS 1/2" | 8 | 8mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 112503 | HS 3/4" | 3 | 3mm | 0.750 | 1.063 | 2,067 | 0.079 |
| 112504 | HS 3/4" | 4 | 4m m | 0.750 | 1.063 | 2.067 | 0.079 |
| 112505 | HS 3/4" | 5 | 5mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 112506 | HS 3/4" | 6 | 6mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 112508 | HS 3/4" | 8 | 8mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 112510 | HS 3/4" | 10 | 10mm | 0.750 | 1,063 | 2.067 | 0.079 |
| 112512 | HS 3/4" | 12 | 12mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 112514 | HS 3/4" | 14 | 14mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 113208 | HS 1 1/4' | 8 | 8mm | 1250 | 1.535 | 2.500 | 0.118 |
| 113210 | HS 1 1/4' | 10 | 10mm | 1250 | 1535 | 2.590 | 0.118 |
| 113212 | HS 1 1/4' | 12 | 12mm | 1.250 | 1.535 | 2.500 | 0.118 |
| 113214 | HS 1 1/4' | 14 | 14mm | 1.250 | 1535 | 2.500 | 0.118 |
| 113216 | HS 1 1/4' | 16 | 16mm | 1.250 | 1535 | 2.500 | 0.118 |
| 113218 | HS 1 1/4' | 18 | 18mm | 1250 | 1.535 | 2.500 | 0.118 |
| 113220 | HS 1 1/4' | 20 | 20mm | 1250 | 1535 | 2.590 | 0.118 |
| 113225 | HS 1 1/4' | 25 | 25mm | 1.250 | 1535 | 2.500 | 0.118 |
