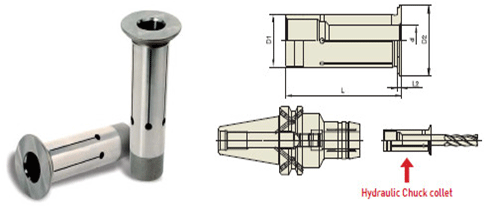

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:CLOSED TYPE) METRIC/INCH |
 |
| HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:CLOSED TYPE) METRIC/INCH |
| TYPE | d | D1 | D2 | L | L2 | EDP No. | |
| HS12 | 1/8" | 0.125 | 0.472 | 0.748 | 1.850 | 0.079 | 512108 |
| 3/16" | 0.188 | 0.472 | 0.748 | 1.850 | 0.079 | 512316 | |
| 1/4" | 0.250 | 0.472 | 0.748 | 1.850 | 0.079 | 512104 | |
| 5/16" | 0.313 | 0.472 | 0.748 | 1.850 | 0.079 | 512516 | |
| HS20 | 1/8" | 0.125 | 0.787 | 0.945 | 1.988 | 0.079 | 520108 |
| 3/16" | 0.188 | 0.787 | 0.945 | 1.988 | 0.079 | 520316 | |
| 1/4" | 0.250 | 0.787 | 0.945 | 1.988 | 0.079 | 520104 | |
| 5/16" | 0.313 | 0.787 | 0.945 | 1.988 | 0.079 | 520516 | |
| 3/8" | 0.375 | 0.787 | 0.945 | 1.988 | 0.079 | 520308 | |
| 1/2" | 0.500 | 0.787 | 0.945 | 1.988 | 0.079 | 520102 | |
| 5/8" | 0.625 | 0.787 | 0.945 | 1.988 | 0.079 | 520508 | |
| HS32 | 1/8" | 0.125 | 1.260 | 1.417 | 2.382 | 0.118 | 532108 |
| 3/16" | 0.188 | 1.260 | 1.417 | 2.382 | 0.118 | 532316 | |
| 1/4" | 0.250 | 1.260 | 1.417 | 2.382 | 0.118 | 532104 | |
| 5/16" | 0.313 | 1.260 | 1.417 | 2.382 | 0.118 | 532516 | |
| 3/8" | 0.375 | 1.260 | 1.417 | 2.382 | 0.118 | 532308 | |
| 1/2" | 0.500 | 1.260 | 1.417 | 2.382 | 0.118 | 532102 | |
| 5/8" | 0.625 | 1.260 | 1.417 | 2.382 | 0.118 | 532508 | |
| 3/4" | 0.750 | 1.260 | 1.417 | 2.382 | 0.118 | 532304 | |
| 1 | 1.000 | 1.260 | 1.417 | 2.382 | 0.118 | 532100 |
