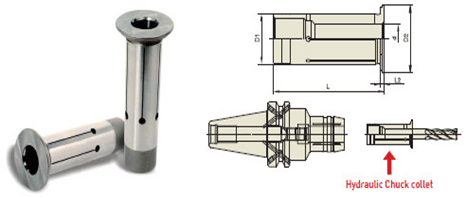

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:CLOSED TYPE) METRIC/METRIC |
 |
| HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:CLOSED TYPE) METRIC/METRIC |
| TYPE | d | D1 | D2 | L | L2 | EDP No. | |
| HS12 | 3 | 3 | 12 | 19 | 47 | 2 | 912030 |
| 4 | 4 | 12 | 19 | 47 | 2 | 912040 | |
| 5 | 5 | 12 | 19 | 47 | 2 | 912050 | |
| 6 | 6 | 12 | 19 | 47 | 2 | 912060 | |
| 7 | 7 | 12 | 19 | 47 | 2 | 912070 | |
| 8 | 8 | 12 | 19 | 47 | 2 | 912080 | |
| HS20 | 3 | 3 | 20 | 24 | 50.5 | 2 | 920030 |
| 4 | 4 | 20 | 24 | 50.5 | 2 | 920040 | |
| 5 | 5 | 20 | 24 | 50.5 | 2 | 920050 | |
| 6 | 6 | 20 | 24 | 50.5 | 2 | 920060 | |
| 7 | 7 | 20 | 24 | 50.5 | 2 | 920070 | |
| 8 | 8 | 20 | 24 | 50.5 | 2 | 920080 | |
| 9 | 9 | 20 | 24 | 50.5 | 2 | 920090 | |
| 10 | 10 | 20 | 24 | 50.5 | 2 | 920100 | |
| 11 | 11 | 20 | 24 | 50.5 | 2 | 920110 | |
| 12 | 12 | 20 | 24 | 50.5 | 2 | 920120 | |
| 13 | 13 | 20 | 24 | 50.5 | 2 | 920130 | |
| 14 | 14 | 20 | 24 | 50.5 | 2 | 920140 | |
| 15 | 15 | 20 | 24 | 50.5 | 2 | 920150 | |
| 16 | 16 | 20 | 24 | 50.5 | 2 | 920160 | |
| HS32 | 6 | 6 | 32 | 36 | 60.5 | 3 | 932060 |
| 8 | 8 | 32 | 36 | 60.5 | 3 | 932080 | |
| 10 | 10 | 32 | 36 | 60.5 | 3 | 932100 | |
| 12 | 12 | 32 | 36 | 60.5 | 3 | 932120 | |
| 14 | 14 | 32 | 36 | 60.5 | 3 | 932140 | |
| 16 | 16 | 32 | 36 | 60.5 | 3 | 932160 | |
| 18 | 18 | 32 | 36 | 60.5 | 3 | 932180 | |
| 20 | 20 | 32 | 36 | 60.5 | 3 | 932200 | |
| 25 | 25 | 32 | 36 | 60.5 | 3 | 932250 |
