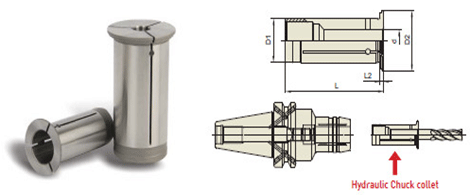

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:OPEN TYPE) INCH/INCH |
 |
| HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:OPEN TYPE) INCH/INCH |
| TYPE | d | D1 | D2 | L | L2 | EDP No. | |
| HK1/2" | 1/8" | 0.125 | 0.500 | 0.748 | 1.850 | 0.079 | 612108 |
| 3/16" | 0.188 | 0.500 | 0.748 | 1.850 | 0.079 | 612316 | |
| 1/4" | 0.250 | 0.500 | 0.748 | 1.850 | 0.079 | 612104 | |
| 5/16" | 0.313 | 0.500 | 0.748 | 1.850 | 0.079 | 612516 | |
| HK3/4" | 1/8" | 0.125 | 0.750 | 0.945 | 1.988 | 0.079 | 625108 |
| 3/16" | 0.188 | 0.750 | 0.945 | 1.988 | 0.079 | 625316 | |
| 1/4" | 0.250 | 0.750 | 0.945 | 1.988 | 0.079 | 625104 | |
| 5/16" | 0.313 | 0.750 | 0.945 | 1.988 | 0.079 | 625516 | |
| 3/8" | 0.375 | 0.750 | 0.945 | 1.988 | 0.079 | 625308 | |
| 1/2" | 0.500 | 0.750 | 0.945 | 1.988 | 0.079 | 625102 | |
| 5/8" | 0.625 | 0.750 | 0.945 | 1.988 | 0.079 | 625508 | |
| HK1 1/4" | 1/8" | 0.125 | 1.250 | 1.417 | 2.382 | 0.118 | 632108 |
| 3/16" | 0.188 | 1.250 | 1.417 | 2.382 | 0.118 | 632316 | |
| 1/4" | 0.250 | 1.250 | 1.417 | 2.382 | 0.118 | 632104 | |
| 5/16" | 0.313 | 1.250 | 1.417 | 2.382 | 0.118 | 632516 | |
| 3/8" | 0.375 | 1.250 | 1.417 | 2.382 | 0.118 | 632308 | |
| 1/2" | 0.500 | 1.250 | 1.417 | 2.382 | 0.118 | 632102 | |
| 5/8" | 0.625 | 1.250 | 1.417 | 2.382 | 0.118 | 632508 | |
| 3/4" | 0.750 | 1.250 | 1.417 | 2.382 | 0.118 | 632304 | |
| 1 | 1.000 | 1.250 | 1.417 | 2.382 | 0.118 | 632100 |
