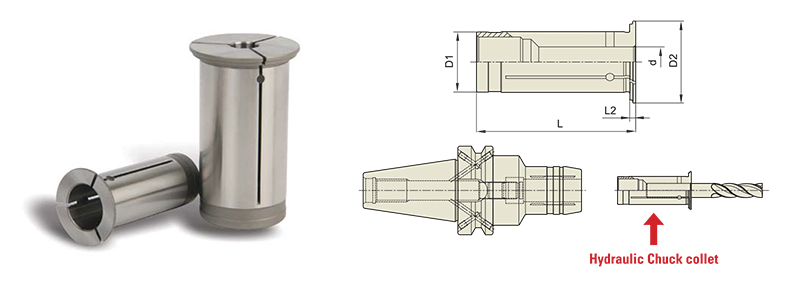

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE: OPEN TYPE) INCH/METRIC |
 |
| HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE: OPEN TYPE) INCH/METRIC |
| EDP | TYPE | d | D1 | D2 | L | L2 | |
| 101203 | HK1/2" | 3 | 3mm | 0.500 | 0,748 | 1.850 | 0.079 |
| 101204 | HK1/2" | 4 | 4mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 101205 | HK1/2" | 5 | 5mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 101206 | HK1/2" | 6 | 6mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 101208 | HK1/2" | 8 | 8mm | 0.500 | 0.748 | 1.850 | 0.079 |
| 102503 | HK3/4" | 3 | 3mm | 0,750 | 1,063 | 2.067 | 0.079 |
| 102504 | HK3/4" | 4 | 4mm | 0.750 | 1.063 | 2067 | 0.079 |
| 102505 | HK3/4" | 5 | 5mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 102506 | HK3/4" | 6 | 6mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 102508 | HK3/4" | 8 | 8mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 102510 | HK3/4" | 10 | 10mm | 0.750 | 1.063 | 2.067 | 0.079 |
| 102512 | HK3/4" | 12 | 12mm | 0.750 | 1.063 | 2067 | 0.079 |
| 102514 | HK3/4" | 14 | 14mm | 0.750 | 1.063 | 2067 | 0.079 |
| 103208 | HK1 1/4" | 8 | 8mm | 1.250 | 1.535 | 2.500 | 0.118 |
| 103210 | HK1 1/4" | 10 | 10mm | 1.250 | 1.535 | 2.500 | 0.118 |
| 103212 | HK1 1/4" | 12 | 12mm | 1.250 | 1.535 | 2.500 | 0.118 |
| 103214 | HK1 1/4" | 14 | 14mm | 1.250 | 1.535 | 2500 | 0.118 |
| 103216 | HK1 1/4" | 16 | 16mm | 1.250 | 1535 | 2.500 | 0.118 |
| 103218 | HK1 1/4" | 18 | 18mm | 1.250 | 1535 | 2.500 | 0.118 |
| 103220 | HK1 1/4" | 20 | 20mm | 1.250 | 1535 | 2.500 | 0.118 |
| 103225 | HK1 1/4" | 25 | 25mm | 1.250 | 1.535 | 2.500 | 0.118 |
