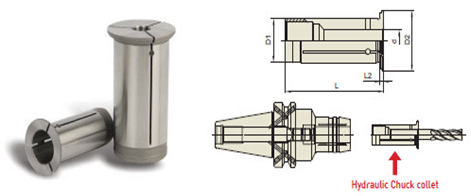

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:OPEN TYPE) METRIC/METRIC |
 |
| HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE:OPEN TYPE) METRIC/METRIC |
| TYPE | d | D1 | D2 | L | L2 | EDP No. | |
| HK12 | 3 | 3 | 12 | 19 | 47 | 2 | 812030 |
| 4 | 4 | 12 | 19 | 47 | 2 | 812040 | |
| 5 | 5 | 12 | 19 | 47 | 2 | 812050 | |
| 6 | 6 | 12 | 19 | 47 | 2 | 812060 | |
| 7 | 7 | 12 | 19 | 47 | 2 | 812070 | |
| 8 | 8 | 12 | 19 | 47 | 2 | 812080 | |
| HK20 | 3 | 3 | 20 | 24 | 50.5 | 2 | 820030 |
| 4 | 4 | 20 | 24 | 50.5 | 2 | 820040 | |
| 5 | 5 | 20 | 24 | 50.5 | 2 | 820050 | |
| 6 | 6 | 20 | 24 | 50.5 | 2 | 820060 | |
| 7 | 7 | 20 | 24 | 50.5 | 2 | 820070 | |
| 8 | 8 | 20 | 24 | 50.5 | 2 | 820080 | |
| 9 | 9 | 20 | 24 | 50.5 | 2 | 820090 | |
| 10 | 10 | 20 | 24 | 50.5 | 2 | 820100 | |
| 11 | 11 | 20 | 24 | 50.5 | 2 | 820110 | |
| 12 | 12 | 20 | 24 | 50.5 | 2 | 820120 | |
| 13 | 13 | 20 | 24 | 50.5 | 2 | 820130 | |
| 14 | 14 | 20 | 24 | 50.5 | 2 | 820140 | |
| 15 | 15 | 20 | 24 | 50.5 | 2 | 820150 | |
| 16 | 16 | 20 | 24 | 50.5 | 2 | 820160 | |
| HK32 | 6 | 6 | 32 | 36 | 60.5 | 3 | 832060 |
| 8 | 8 | 32 | 36 | 60.5 | 3 | 832080 | |
| 10 | 10 | 32 | 36 | 60.5 | 3 | 832100 | |
| 12 | 12 | 32 | 36 | 60.5 | 3 | 832120 | |
| 14 | 14 | 32 | 36 | 60.5 | 3 | 832140 | |
| 16 | 16 | 32 | 36 | 60.5 | 3 | 832160 | |
| 18 | 18 | 32 | 36 | 60.5 | 3 | 832180 | |
| 20 | 20 | 32 | 36 | 60.5 | 3 | 832200 | |
| 25 | 25 | 32 | 36 | 60.5 | 3 | 832250 |
