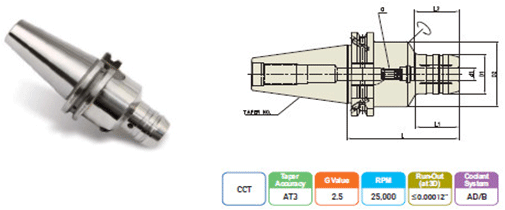

HYDRAULIC CHUCK (For MOULD) BT |
 |
| HYDRAULIC CHUCK (For MOULD) BT |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| 40 | BT40AD/B-HMC6-120 | 6 | 20 | 44.5 | 120 | 70 | 27 | M5x0.8mm | WH100HMC |
| BT40AD/B-HMC6-150 | 6 | 20 | 44.5 | 150 | 100 | 27 | M5x0.8mm | WH102HMC | |
| BT40AD/B-HMC8-120 | 8 | 22 | 44.5 | 120 | 70 | 27 | M6x1.0mm | WH104HMC | |
| BT40AD/B-HMC8-150 | 8 | 22 | 44.5 | 150 | 100 | 27 | M6x1.0mm | WH106HMC | |
| BT40AD/B-HMC10-120 | 10 | 24 | 44.5 | 120 | 70 | 32 | M8x1.0mm | WH108HMC | |
| BT40AD/B-HMC10-150 | 10 | 24 | 44.5 | 150 | 100 | 32 | M8x1.0mm | WH110HMC | |
| BT40AD/B-HMC12-120 | 12 | 25 | 44.5 | 120 | 70 | 37 | M10x1.0mm | WH112HMC | |
| BT40AD/B-HMC12-150 | 12 | 25 | 44.5 | 150 | 100 | 37 | M10x1.0mm | WH114HMC | |
| BT40AD/B-HMC16-120 | 16 | 32 | 44.5 | 120 | 70 | 42 | M12x1.0mm | WH116HMC | |
| BT40AD/B-HMC16-150 | 16 | 32 | 44.5 | 150 | 100 | 42 | M12x1.0mm | WH118HMC | |
| BT40AD/B-HMC20-120 | 20 | 34 | 43.75 | 120 | - | 42 | M16x1.0mm | WH120HMC | |
| BT40AD/B-HMC20-150 | 20 | 34 | 47 | 150 | - | 42 | M16x1.0mm | WH122HMC |
