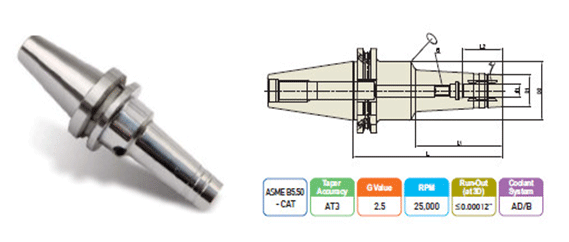

HYDRAULIC CHUCK (For MOULD) CAT |
 |
| HYDRAULIC CHUCK (For MOULD) CAT |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| 40 | CAT40AD/B - HMC 1/4 - 4.72 | 0.250 | 0.787 | 1.949 | 4.720 | 2.756 | 1.063 | M5x0.8mm | WK020HMC |
| CAT40AD/B - HMC 1/4 - 5.90 | 0.250 | 0.787 | 1.949 | 5.900 | 3.937 | 1.063 | M5x0.8mm | WK022HMC | |
| CAT40AD/B - HMC 5/16 - 4.72 | 0.313 | 0.866 | 1.949 | 4.720 | 2.756 | 1.063 | M6x1.0mm | WK024HMC | |
| CAT40AD/B - HMC 5/16 - 5.90 | 0.313 | 0.866 | 1.949 | 5.900 | 3.937 | 1.063 | M6x1.0mm | WK026HMC | |
| CAT40AD/B - HMC 3/8 - 4.72 | 0.375 | 0.945 | 1.949 | 4.720 | 2.756 | 1.260 | M8x1.0mm | WK028HMC | |
| CAT40AD/B - HMC 3/8 - 5.90 | 0.375 | 0.945 | 1.949 | 5.900 | 3.937 | 1.260 | M8x1.0mm | WK030HMC | |
| CAT40AD/B - HMC 1/2 - 4.72 | 0.500 | 0.984 | 1.949 | 4.720 | 2.756 | 1.457 | M10x1.0mm | WK032HMC | |
| CAT40AD/B - HMC 1/2 - 5.90 | 0.500 | 0.984 | 1.949 | 5.900 | 3.937 | 1.457 | M10x1.0mm | WK034HMC | |
| CAT40AD/B - HMC 5/8 - 4.72 | 0.625 | 1.260 | 1.949 | 4.720 | 2.756 | 1.654 | M12x1.0mm | WK036HMC | |
| CAT40AD/B - HMC 5/8 - 5.90 | 0.625 | 1.260 | 1.949 | 5.900 | 3.937 | 1.654 | M12x1.0mm | WK038HMC | |
| CAT40AD/B - HMC 3/4 - 4.72 | 0.750 | 1.417 | 1.949 | 4.720 | 2.756 | 1.654 | M16x1.0mm | WK040HMC | |
| CAT40AD/B - HMC 3/4 - 5.90 | 0.750 | 1.417 | 1.949 | 5.900 | 3.937 | 1.654 | M16x1.0mm | WK042HMC | |
| 50 | CAT50AD/B - HMC 1/4 - 5.90 | 0.250 | 0.787 | 1.752 | 5.900 | 3.937 | 1.063 | M5x0.8mm | WL020HMC |
| CAT50AD/B - HMC 5/16 - 5.90 | 0.313 | 0.866 | 1.752 | 5.900 | 3.937 | 1.063 | M6x1.0mm | WL022HMC | |
| CAT50AD/B - HMC 3/8 - 5.90 | 0.375 | 0.945 | 1.752 | 5.900 | 3.937 | 1.260 | M8x1.0mm | WL024HMC | |
| CAT50AD/B - HMC 1/2 - 5.90 | 0.500 | 0.984 | 1.752 | 5.900 | 3.937 | 1.457 | M10x1.0mm | WL026HMC | |
| CAT50AD/B - HMC 5/8 - 5.90 | 0.625 | 1.260 | 1.752 | 5.900 | 3.937 | 1.457 | M12x1.0mm | WL028HMC | |
| CAT50AD/B - HMC 3/4 - 5.90 | 0.750 | 1.417 | 1.752 | 5.900 | 3.937 | 1.457 | M16x1.0mm | WL030HMC | |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| 40 | CAT40AD/B-HMC6-120 | 6 | 20 | 49.5 | 120 | 70 | 27 | M5X0.8mm | WK100HMC |
| CAT40AD/B-HMC6-150 | 6 | 20 | 49.5 | 150 | 100 | 27 | M5X0.8mm | WK102HMC | |
| CAT40AD/B-HMC8-120 | 8 | 22 | 49.5 | 120 | 70 | 27 | M6X1.0mm | WK104HMC | |
| CAT40AD/B-HMC8-150 | 8 | 22 | 49.5 | 150 | 100 | 27 | M6X1.0mm | WK106HMC | |
| CAT40AD/B-HMC10-120 | 10 | 24 | 49.5 | 120 | 70 | 32 | M8X1.0mm | WK108HMC | |
| CAT40AD/B-HMC10-150 | 10 | 24 | 49.5 | 150 | 100 | 32 | M8X1.0mm | WK110HMC | |
| CAT40AD/B-HMC12-120 | 12 | 25 | 49.5 | 120 | 70 | 37 | M10X1.0mm | WK112HMC | |
| CAT40AD/B-HMC12-150 | 12 | 25 | 49.5 | 150 | 100 | 37 | M10X1.0mm | WK114HMC | |
| CAT40AD/B-HMC16-120 | 16 | 32 | 49.5 | 120 | 70 | 42 | M12X1.0mm | WK116HMC | |
| CAT40AD/B-HMC16-150 | 16 | 32 | 49.5 | 150 | 100 | 42 | M12X1.0mm | WK118HMC | |
| CAT40AD/B-HMC20-120 | 20 | 36 | 49.5 | 120 | 70 | 42 | M16X1.0mm | WK120HMC | |
| CAT40AD/B-HMC20-150 | 20 | 36 | 49.5 | 150 | 100 | 42 | M16X1.0mm | WK122HMC | |
| 50 | CAT50AD/B-HMC6-150 | 6 | 20 | 44.5 | 150 | 100 | 27 | M5X0.8mm | WL100HMC |
| CAT50AD/B-HMC8-150 | 8 | 22 | 44.5 | 150 | 100 | 27 | M6X1.0mm | WL102HMC | |
| CAT50AD/B-HMC10-150 | 10 | 24 | 44.5 | 150 | 100 | 32 | M8X1.0mm | WL104HMC | |
| CAT50AD/B-HMC12-150 | 12 | 25 | 44.5 | 150 | 100 | 37 | M10X1.0mm | WL106HMC | |
| CAT50AD/B-HMC16-150 | 16 | 32 | 44.5 | 150 | 100 | 42 | M12X1.0mm | WL108HMC | |
| CAT50AD/B-HMC20-150 | 20 | 36 | 44.5 | 150 | 100 | 42 | M16X1.0mm | WL110HMC |
