HYDRAULIC CHUCK (Power E Hydro) - BT |
 |
| HYDRAULIC CHUCK (Power E Hydro) BT |

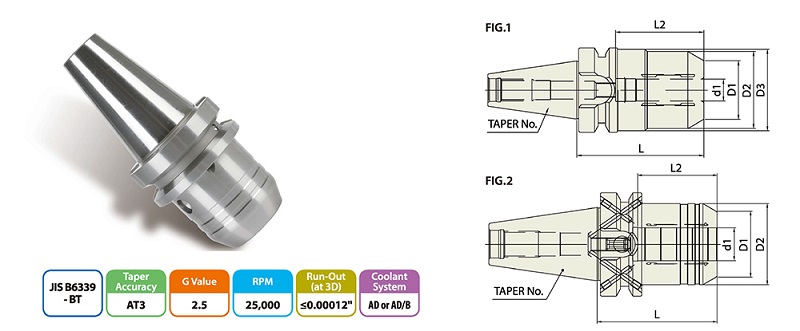

| TAPER NO. | MODEL No. | d1 | D1 | D2 | D3 | L | L2 | G | FIG | EDP NO. |
| 30 | BT30-HC3/4P-3.543 | 0.75 | 1.496 | 1.653 | 1.751 | 3.543 | 1.889 | M8x1.0mm | 1 | WG002PE |
| 40 | BT40AD/B-HC3/4P-2.854 | 0.75 | 1.496 | 1.938 | - | 2.854 | 1.889 | M8x1.0mm | 2 | WH002PE |
| 50 | BTSOAD/B-HC1 1/4P-3.543 | 1.25 | 2.303 | 2.834 | - | 3.543 | 2.244 | M8x1.0mm | 2 | WI002PE |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | D3 | L | L2 | G | FIG. | EDP NO. |
| 30 | BT30-HC1 2P-69 | 12 | 32 | 42 | 44.5 | 69 | 41 | M8x1.0 | 1 | WG100PE |
| BT30-HC20P-90 | 20 | 38 | 42 | 44.5 | 90 | 48 | M8x1.0 | 1 | WG102PE | |
| 40 | BT40AD/B-HC1 2P-58 | 12 | 32 | 42 | - | 58 | 41 | M8x1.0 | 2 | WH100PE |
| BT40AD/B-HC20P-72.5 | 20 | 38 | 49.25 | - | 72.5 | 48 | M8x1.0 | 2 | WH102PE | |
| 50 | BTSOAD/B-HC20P-83.5 | 20 | 38 | 49.25 | - | 83.5 | 48 | M8x1.0 | 2 | WI100PE |
| BTSOAD/B-HC32P-90 | 32 | 58.5 | 72 | - | 90 | 57 | M8x1.0 | 2 | WI102PE |
