HYDRAULIC CHUCK (Power E Hydro) - HSK |
 |
| HYDRAULIC CHUCK (Power E Hydro) - HSK |

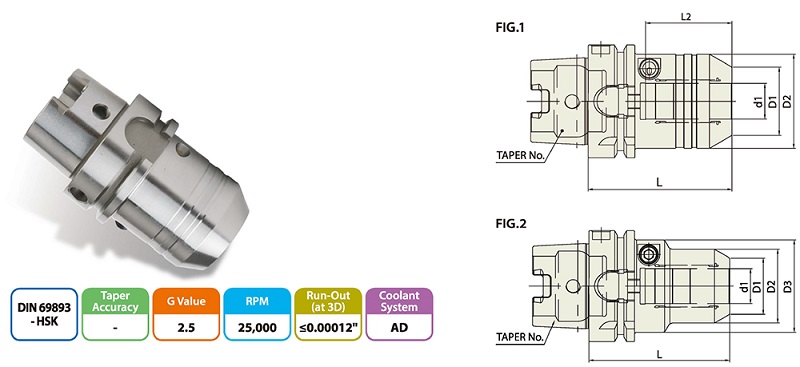

| TAPER NO. | MODEL No. | d1 | D1 | D2 | D3 | L | L2 | G | FIG | EDP NO. |
| 63A | HSK63A-HC3/4P-3.149 | 0.75 | 1.496 | 2.066 | - | 3.149 | 1.889 | M8x1.0mm | 1 | WQ002PE |
| HSK63A-HC3/4P-5.118 | 0.75 | 1.496 | 2.066 | - | 5.118 | 1.889 | M8x1.0mm | 1 | WQ003PE | |
| 100A | HSK100A-HC1 1/4P-3.937 | 1.25 | 2.303 | 2.834 | - | 3.937 | 2.244 | M8x1.0mm | 1 | WR002PE |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | D3 | L | L2 | G | FIG | EDP NO. |
| 60A | HSK63A-HC1 2P-80 | 12 | 32 | 42 | 52.5 | 80 | 41 | M8x1.0 | 2 | WQ100PE |
| HSK63A-HC20P-80 | 20 | 38 | 52.5 | - | 80 | 48 | M8x1.0 | 1 | WQ102PE | |
| 100A | HSK100A-HC20P-90 | 20 | 38 | 52.5 | - | 90 | 48 | M8x1.0 | 1 | WR100PE |
| HSK100A-HC32P-100 | 32 | 58.5 | 72 | - | 100 | 57 | M8x1.0 | 1 | WR102PE |
