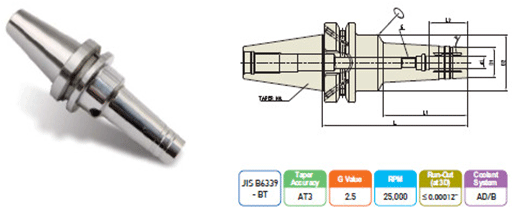

HYDRAULIC CHUCK (RADIAL TOOL LENGTH PRE-SETTING TYPE) BT |
 |
| HYDRAULIC CHUCK (RADIAL TOOL LENGTH PRE-SETTING TYPE) BT |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | EDP NO. |
| 30 | BT30AD/B-HCR12-85 | 12 | 32 | 44.5 | 85 | 40 | 37 | WG100HCR |
| BT30AD/B-HCR20-85 | 20 | 44 | 44.5 | 85 | - | 42 | WG102HCR | |
| 40 | BT40AD/B-HCR12-90 | 12 | 32 | 44.5 | 90 | 42.5 | 37 | WH100 |
| BT40AD/B-HCR20-90 | 20 | 42 | 44.5 | 90 | 42.5 | 42 | WH116 | |
| BT40AD/B-HCR32-105 | 32 | 60 | 60 | 105 | - | 55 | WH118 |
