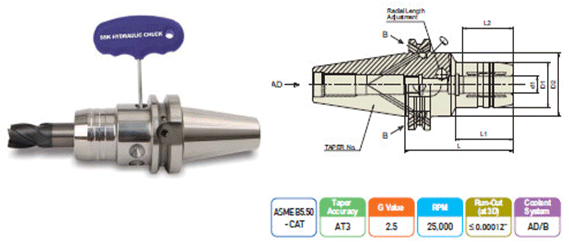

HYDRAULIC CHUCK (RADIAL TOOL LENGTH PRE-SETTING TYPE) CAT |
 |
| HYDRAULIC CHUCK (RADIAL TOOL LENGTH PRE-SETTING TYPE) CAT |
| MODEL No. | TAPER NO. | d1 | D1 | D2 | L | L1 | L2 | EDP NO. |
| CAT40 AD/B-HCR12-80.5 | 40 | 12 | 32 | 49.5 | 80.5 | 31.5 | 37 | WK100HCR |
| CAT40 AD/B-HCR20-80.5 | 20 | 42 | 49.5 | 80.5 | 34 | 42 | WK102HCR | |
| CAT40 AD/B-HCR32-110 | 32 | 63 | 80 | 110 | 50 | 55 | WK104HCR | |
| CAT50 AD/B-HCR12-80.5 | 50 | 12 | 32 | 49.5 | 80.5 | 31.5 | 37 | WL100HCR |
| CAT50 AD/B-HCR20-80.5 | 20 | 42 | 49.5 | 80.5 | 34 | 42 | WL102HCR | |
| CAT50 AD/B-HCR32-100 | 32 | 60 | 60 | 100 | - | 55 | WL104HCR |
