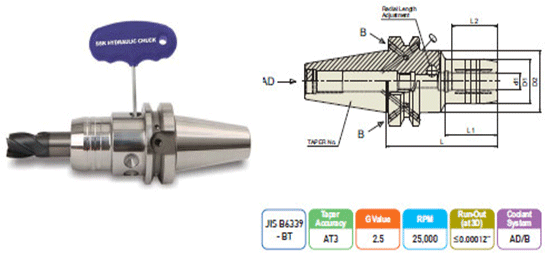

HYDRAULIC CHUCK (SHORT & RIGID) BT |
 |
| HYDRAULIC CHUCK (SHORT & RIGID) BT |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L2 | G | EDP NO. |
| 30 | BT30AD/B-HC20S-85 | 20 | 41 | 44 | 85 | 42 | M6x1.0mm | WG100SNR |
| 40 | BT40AD/B-HC12S-58 | 12 | 32 | 42 | 58 | 37 | M8x1.0mm | WH100SNR |
| BT40AD/B-HC20S-72.5 | 20 | 38 | 49.25 | 73 | 42 | M8x1.0mm | WH102SNR | |
| BT40AD/B-HC1/2S-2.284 | WH100SNRI | |||||||
| BT40AD/B-HC3/4S-2.854 (72.5mm) | WH102SNRI | |||||||
| BT40AD/B-HC1S-3.74 (95mm) | WH103SNRI |
