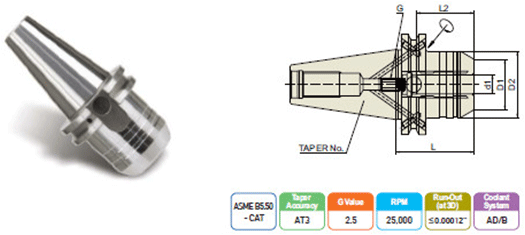

HYDRAULIC CHUCK (SHORT & RIGID) CAT |
 |
| HYDRAULIC CHUCK (SHORT & RIGID) CAT |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L2 | G | EDP NO. |
| 40 | CAT40AD/B - HC 1/2S - 2.52 | 0.500 | 1.260 | 1.654 | 2.520 | 1.457 | M8x1.0mm | WK020SNR |
| CAT40AD/B - HC 5/8S - 2.52 | 0.625 | 1.362 | 1.752 | 2.520 | 1.654 | M10x1.0mm | WK021SNR | |
| CAT40AD/B - HC 3/4S - 2.52 | 0.750 | 1.512 | 1.752 | 2.520 | 1.654 | M10x1.0mm | WK022SNR | |
| CAT40AD/B - HC 1S - 2.52 | 1.000 | 2.244 | 2.598 | 3.500 | 1.890 | M16x1.0mm | WK024SNR | |
| 50 | CAT50AD/B - HC 1/2S - 3.19 | 0.500 | 1.879 | 2.752 | 3.189 | 1.457 | M8x1.0mm | WL020SNR |
| CAT50AD/B - HC 5/8S - 3.19 | 0.625 | 1.811 | 2.752 | 3.189 | 1.654 | M10x1.0mm | WL022SNR | |
| CAT50AD/B - HC 3/4S - 3.19 | 0.750 | 2.185 | 2.752 | 3.189 | 2.165 | M10x1.0mm | WL024SNR | |
| CAT50AD/B - HC 1S - 3.19 | 1.000 | 2.185 | 2.752 | 3.189 | 2.165 | M16x1.0mm | WL026SNR | |
| CAT50AD/B - HC 1 1/4S - 3.19 | 1.250 | 2.752 | 1.417 | 3.189 | 2.165 | M16x1.0mm | WL028SNR | |
| Unit : mm | ||||||||
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L2 | G | EDP NO. |
| 40 | CAT40 AD/B-HC12S-50 | 12 | 32 | 42 | 50 | 37 | M8X1.0mm | WK100SNR |
| CAT40 AD/B-HC20S-64.5 | 20 | 38 | 49.25 | 64.5 | 42 | M16X1.0mm | WK102SNR | |
| 50 | CAT50 AD/B-HC12S-50 | 12 | 32 | 42 | 50 | 37 | M8X1.0mm | WL100SNR |
| 50 | CAT50 AD/B-HC20S-64.5 | 20 | 38 | 49.5 | 64.5 | 42 | M16X1.0mm | WL102SNR |
| 50 | CAT50 AD/B-HC32S-81 | 32 | 55 | 72 | 81 | 55 | M16X1.0mm | WL104SNR |
