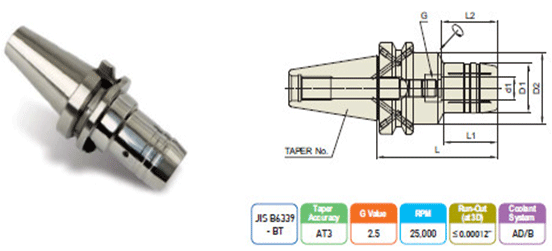

HYDRAULIC CHUCK (SLIM) BT INCH |
 |
| HYDRAULIC CHUCK (SLIM) BT INCH |
| TAPER NO. | MODEL No. | d1 | D1 | D2 | L | L1 | L2 | G | EDP NO. |
| 30 | BT30AD/B - HC 1/4 - 2.75 | 0.250 | 1.024 | 1.752 | 2.750 | 1.161 | 1.063 | M5x0.8mm | WG020 |
| BT30AD/B - HC 5/16 - 2.75 | 0.313 | 1.102 | 1.752 | 2.750 | 1.181 | 1.063 | M6x1.0mm | WG022 | |
| BT30AD/B - HC 3/8 - 2.95 | 0.375 | 1.181 | 1.752 | 2.950 | 1.220 | 1.260 | M8x1.0mm | WG024 | |
| BT30AD/B - HC 1/2 - 3.35 | 0.500 | 1.260 | 1.772 | 3.350 | 1.575 | 1.457 | M10x1.0mm | WG026 | |
| BT30AD/B - HC 5/8 - 3.54 | 0.625 | 1.496 | 1.772 | 3.540 | 1.811 | 1.654 | M10x1.0mm | WG028 | |
| BT30AD/B - HC 3/4 - 3.54 | 0.750 | 1.654 | 1.772 | 3.540 | 1.890 | 1.654 | M6x1.0mm | WG030 | |
| 40 | BT40AD/B - HC 1/4 - 3.54 | 0.250 | 1.024 | 1.693 | 3.540 | 1.181 | 1.063 | M5x0.8mm | WH020 |
| BT40AD/B - HC 5/16 - 3.54 | 0.313 | 1.102 | 1.752 | 3.540 | 1.181 | 1.063 | M6x1.0mm | WH022 | |
| BT40AD/B - HC 3/8 - 3.54 | 0.375 | 1.181 | 1.752 | 3.540 | 1.260 | 1.260 | M8x1.0mm | WH024 | |
| BT40AD/B - HC 1/2 - 3.54 | 0.500 | 1.260 | 1.752 | 3.540 | 1.378 | 1.457 | M10x1.0mm | WH026 | |
| BT40AD/B - HC 5/8 - 3.54 | 0.625 | 1.496 | 1.870 | 3.540 | 1.575 | 1.654 | M12x1.0mm | WH028 | |
| BT40AD/B - HC 3/4 - 3.54 | 0.750 | 1.654 | 1.870 | 3.540 | 1.575 | 1.654 | M16x1.0mm | WH030 | |
| BT40AD/B - HC 1 - 3.94 | 1.000 | 1.969 | 1.870 | 3.940 | 1.772 | 1.890 | M16x1.0mm | WH032 | |
| BT40AD/B - HC 1 1/4 - 4.13 | 1.250 | 2.362 | - | 4.130 | 1.969 | 2.165 | M16x1.0mm | WH034 |
