JACOBS TAPER ARBORS |
|
 |
 |
| JACOBS TAPER ARBORS |

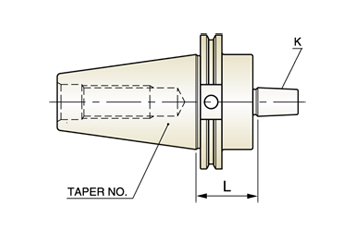

| EDP No. | Type | Taper No. | K | L |
| GK042 | CAT 40-JTA1-1.50 | 40 | #1 | 1.50 |
| GK043 | CAT 40-JTA2-1.50 | 40 | #2 | 1.50 |
| GK044 | CAT 40-JTA3-1.50 | 40 | #3 | 1.50 |
| GK045 | CAT 40-JTA4-1.50 | 40 | #4 | 1.50 |
| GK046 | CAT 40-JTA6-1.50 | 40 | #6 | 1.50 |
| GK047 | CAT 40-JTA33-1.50 | 40 | #33 | 1.50 |
| GL042 | CAT 50-JTA1-1.50 | 50 | #1 | 1.50 |
| GL043 | CAT 50-JTA2-1.50 | 50 | #2 | 1.50 |
| GL044 | CAT 50-JTA3-1.50 | 50 | #3 | 1.50 |
| GL045 | CAT 50-JTA4-1.50 | 50 | #4 | 1.50 |
| GL046 | CAT 50-JTA6-1.50 | 50 | #6 | 1.50 |
| GL047 | CAT 50-JTA33-1.50 | 50 | #33 | 1.50 |
