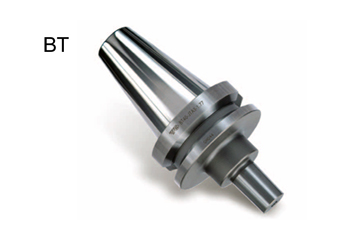

JACOBS TAPER ARBORS |
|
 |
 |
| JACOBS TAPER ARBOR |

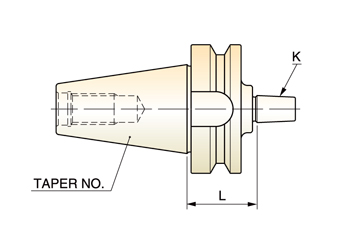

| EDP No. | Type | Taper No. | K | L |
| GH042 | BT 40-JTA1-1.34 | 40 | #1 | 1.34 |
| GH043 | BT 40-JTA2-1.77 | 40 | #2 | 1.77 |
| GH044 | BT 40-JTA3-1.77 | 40 | #3 | 1.77 |
| GH045 | BT 40-JTA4-1.77 | 40 | #4 | 1.77 |
| GH046 | BT 40-JTA6-1.77 | 40 | #6 | 1.77 |
| GH047 | BT 40-JTA33-1.77 | 40 | #33 | 1.77 |
| GI042 | BT 50-JTA1-1.80 | 50 | #1 | 1.80 |
| GI043 | BT 50-JTA2-1.77 | 50 | #2 | 1.77 |
| GI044 | BT 50-JTA3-1.77 | 50 | #3 | 1.77 |
| GI045 | BT 50-JTA4-1.77 | 50 | #4 | 1.77 |
| GI046 | BT 50-JTA6-1.77 | 50 | #6 | 1.77 |
| GI047 | BT 50-JTA33-1.77 | 50 | #33 | 1.77 |
