MILLING CHUCKS |
|
 |
 |

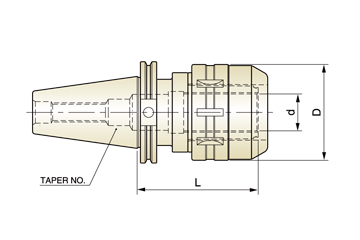

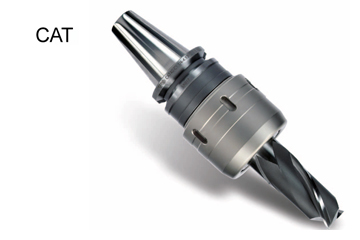

| STANDARD MILLING CHUCK |
| EDP No. | Type | Taper No. | d | L | D |
| LK010 | CAT 40-C3/4-4.13 | 40 | 0.750 | 4.13 | 2.050 |
| LK014 | CAT 40-C1" -4.13 | 40 | 1.000 | 4.13 | 2.360 |
| LK017 | CAT 40-C1*1/4-4.13 | 40 | 1.250 | 4.13 | 2.835 |
| LL010 | CAT 50-C3/4-4.13 | 50 | 0.750 | 4.13 | 2.050 |
| LL014 | CAT 50-C1" -4.13 | 50 | 1.000 | 4.13 | 2.360 |
| LL017 | CAT 50-C1*1/4-4.13 | 50 | 1.250 | 4.13 | 2.835 |
